5401-XT - Shakespeare Galaxy 4' Antenna

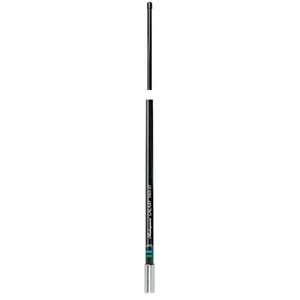

5401-XT Galaxy 4' Antenna

Center-fed 1/2 wave coaxial sleeve

This antenna is the same as the Style 5400-XT, but in an exclusive black Galaxy finish. It's an outstanding, 4' antenna of heavy-duty construction for general purpose communications. Its at home on T-tops, hard-tops and other positions aloft, where its small size can deliver maximum range.

Features:

• Brass and copper elements for maximum range
• Stainless steel ferrule with standard 1"-14 thread
• Includes 20' RG-8/X cable and a PL-259 connector
• Suggested mount: Shakespeare Style 4187 Ratchet Mount
• One section
• Shakespeare Limited Warranty: 5 years
• Includes FME Cables

Technical Specifications:

The Shakespeare 5401-XT Galaxy 4' Antenna is a heavy-duty, center-fed 1/2 wave coaxial sleeve antenna designed for general purpose VHF marine band communications. This 4-foot antenna is suitable for installation on T-tops, hard-tops, and other elevated positions where its compact size can contribute to effective range. It features brass and copper elements for signal transmission and a stainless steel ferrule with a standard 1"-14 thread for secure mounting. The antenna operates within the VHF Marine Band with a 5 MHz bandwidth at 2.0:1 VSWR and a nominal 1.5:1 VSWR at 156.8 MHz. It supports a maximum input of 50 watts and offers 3 dB gain. Each unit includes a 20' RG-8/X cable and a PL-259 connector, facilitating immediate integration into existing marine communication systems. This model, part number 5401-XT, is identical to the Style 5400-XT but features an exclusive black Galaxy finish.
