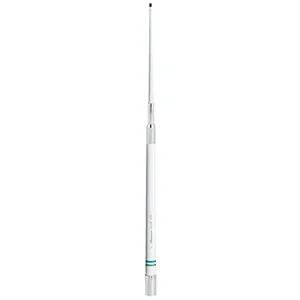

Shakespeare Galaxy 5230
14' VHF 8dB Gain
5/8 wave over 1/2 wave dipole
The ultra-performer, Shakespeares Style 5230 is the most effective 8dB antenna system available anywhere, thanks to its increased signal capture area.
Technical Specifications:
| Frequency: | VHF Marine Band |
| Bandwidth: | 3 MHz within 2.0:1 VSWR |
| SWR: | nominally 1.5:1 at 156.8 MHz |
| Impedance: | 50 ohms |
| Gain: | 8 dB |
| Max Input (Watts): | 200 watts |
| DC Ground: | YES |
| Height (feet): | 14 |
| Polarization: | Vertical |
The Shakespeare 5230 is a 14-foot VHF marine band radio antenna designed for business and IT buyers requiring reliable communication hardware for maritime applications. This antenna features brass and copper elements to support signal range and efficiency. It operates within the VHF Marine Band with a 3 MHz bandwidth (within 2.0:1 VSWR) and a nominal SWR of 1.5:1 at 156.8 MHz. With an 8 dB gain and a maximum input of 200 watts, it provides vertical polarization and 50-ohm impedance. The unit includes 20 feet of RG-8/X cable and a PL-259 connector for installation. It is constructed with a stainless steel ferrule featuring a standard 1"-14 thread for mounting. The antenna comes in two sections (base 94", tip 74"), facilitating shipping and setup. This product is suitable for organizations needing a robust VHF antenna solution with a 5-year limited warranty.
The antenna includes 20 feet of RG-8/X cable and a PL-259 connector. Mounting kits are suggested separately.
The antenna features a stainless steel ferrule with a standard 1"-14 thread. Suggested mounts are the Shakespeare Style 409-R or 410-R Mounting Kits, which are sold separately.
The Shakespeare 5230 antenna has a maximum input power rating of 200 watts.
No, the antenna is shipped in two sections: a base section measuring 94 inches and a tip section measuring 74 inches. This configuration makes it UPS shippable.
5230 - Shakespeare 14' VHF Antenna
