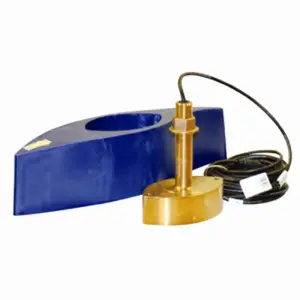

525TID-BHD - Furuno 1kW Bronze Thru-Hull w/Temp & High Speed Fairing Block

• 1kw

• 50/200 kHz with Diplexer

• 15x21 degree Beam Angle at 50 khz

• 3x5 degree Beam Angle at 200 kHz

• Bronze Thru-Hull with Temperature

• 10-Pin Connector

• Ships with High-Speed Fairing Block AIR-033-523

• Supercedes B256 transducer, with significant increase in performance at 50 kHz.


• Recommended for sport fishing boats above 26' (8m) and small to mid size commercial fishing boats.


•  Includes temperature sensor


•  Transducer ID option

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Furuno 525TID-BHD is a 1kW bronze thru-hull transducer designed for marine applications, specifically for sport fishing boats over 26 feet (8m) and small to mid-size commercial fishing vessels. This unit operates at dual frequencies, 50/200 kHz, and includes a diplexer. It features a 15x21 degree beam angle at 50 kHz and a 3x5 degree beam angle at 200 kHz, enabling detailed target separation up to 2,200 feet. The transducer integrates a temperature sensor and connects via a 10-pin connector. It ships with a high-speed fairing block (AIR-033-523) to maintain clear screen displays and bottom traces at speeds exceeding 30 knots. This model is engineered to enhance the performance of 600W fishfinders, particularly at 50 kHz, offering increased sensitivity compared to standard single-element transducers.
