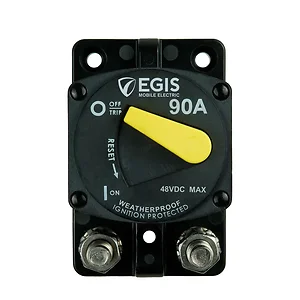

EGIS 87-Series 90 Amp Circuit Breaker Surface Mount
Model: 4704-090IP 66 Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
High Voltage (48 Vdc) Rating: easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc
High Electrical / Manual Switching Endurance delivers 2,000 cycles at full current
High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power
4 Year Warranty: We stand behind our product's ability to meet your needs.
Specifications| CONTINUOUS CURRENT (AMPS) | 90 |
| MAX VOLTAGE (VDC) | 48 |
| CYCLING ENDURANCE | 2,000 |
| INTERRUPT CURRENT @ 14 VDC (AMPS) | 5,000 |
| INTERRUPT CURRENT @ 28 VDC (AMPS) | 3,000 |
| INGRESS PROTECTION RATING | INGRESS PROTECTION RATING |
The Egis Mobile Electric 87-Series 90 Amp Circuit Breaker, part number 4704-090, is a surface-mount circuit protection device designed for IT and industrial applications requiring reliable electrical system safeguarding. This unit is suitable for environments where dust, moisture, and vibration are present, offering IP66 sealing against ingress and reinforced mounting tabs for structural stability. It features high-visibility ON/OFF controls and is constructed with stainless steel hardware and serrated flange nuts for corrosion and vibration resistance. With a 48 Vdc maximum voltage rating, it supports 12, 24, 36, and 48 Vdc applications. The breaker provides a continuous current rating of 90 amps and an electrical/manual switching endurance of 2,000 cycles at full current. Its high interrupt current capabilities safely protect circuits connected to large battery banks. This product is manufactured in the USA and includes a 4-year warranty.
This circuit breaker has a maximum voltage rating of 48 Vdc, making it compatible with 12 Vdc, 24 Vdc, 36 Vdc, and 48 Vdc electrical systems.
The Egis 87-Series circuit breaker is rated IP66, indicating it is sealed against dust and water intrusion, making it suitable for harsh environments.
This circuit breaker is rated for a continuous current of 90 amps, providing consistent protection for connected circuits.
This is a surface-mount circuit breaker, designed for direct installation onto a flat surface. It features reinforced mounting tabs for enhanced structural reliability.
4704-090 - Egis Mobile Electric EGIS 87-Series 90 Amp Circuit Breaker Surface Mount
