Condition: New

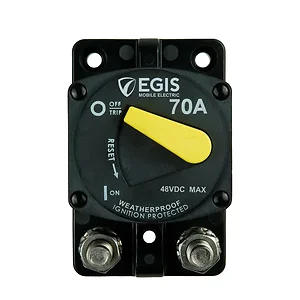

EGIS 87-Series 70 Amp Circuit Breaker Surface Mount
Model: 4704-070IP 66 Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
High Voltage (48 Vdc) Rating: easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc
High Electrical / Manual Switching Endurance delivers 2,000 cycles at full current
High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power
4 Year Warranty: We stand behind our product's ability to meet your needs.
Specifications| CONTINUOUS CURRENT (AMPS) | 70 |
| MAX VOLTAGE (VDC | 48 |
| CYCLING ENDURANCE | 2,000 |
| INTERRUPT CURRENT @ 14 VDC (AMPS) | 5,000 |
| INTERRUPT CURRENT @ 28 VDC (AMPS) | 3,000 |
| INGRESS PROTECTION RATING | IP66 |
The Egis Mobile Electric 87-Series 70 Amp Circuit Breaker, part number 4704-070, is a surface-mount circuit protection device designed for IT and industrial applications requiring robust electrical system safeguarding. This component is suitable for environments where dust and moisture ingress are concerns, featuring an IP66 rating for sealed protection. It supports a maximum voltage of 48 VDC, making it compatible with common 12 VDC and 24 VDC systems, as well as higher voltage 36 VDC and 48 VDC setups. Key features include high visibility ON/OFF controls, reinforced mounting tabs for vibration resistance, and stainless steel hardware for corrosion resistance. The breaker offers a cycling endurance of 2,000 cycles at full current and high interrupt current ratings (5,000A at 14 VDC, 3,000A at 28 VDC) for protection against large battery bank faults. It is manufactured in the USA and comes with a 4-year warranty, providing a reliable solution for critical circuit protection needs.
This circuit breaker is rated for a maximum voltage of 48 VDC. It is designed to easily support 12 VDC and 24 VDC applications, while also offering protection for 36 VDC and 48 VDC systems.
The Egis 87-Series circuit breaker has an IP66 ingress protection rating. This means it is sealed against dust and water intrusion, making it suitable for harsh environments.
The circuit breaker includes stainless steel hardware and serrated flange nuts. This hardware is designed to be corrosion and vibration resistant for harsh environment applications.
This specific model, the 4704-070, has a continuous current rating of 70 Amps.
4704-070 - Egis Mobile Electric EGIS 87-Series 70 Amp Circuit Breaker Surface Mount
