10 Available
Condition: New

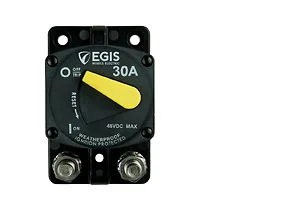

EGIS 87-Series 30 Amp Circuit Breaker Surface Mount
Model: 4704-030IP 66 Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
High Voltage (48 Vdc) Rating: easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc
High Electrical / Manual Switching Endurance delivers 2,000 cycles at full current
High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power
4 Year Warranty: We stand behind our product's ability to meet your needs.
Specifications| CONTINUOUS CURRENT (AMPS) | 30 |
| MAX VOLTAGE (VDC) | 48 |
| CYCLING ENDURANCE | 2,000 |
| INTERRUPT CURRENT @ 14 VDC (AMPS) | 5,000 |
| INTERRUPT CURRENT @ 28 VDC (AMPS) | 3,000 |
| INGRESS PROTECTION RATING | IP66 |
The Egis Mobile Electric 87-Series 30 Amp Circuit Breaker, part number 4704-030, is a surface-mount circuit protection device designed for IT and industrial applications requiring reliable electrical system safeguarding. This component is suitable for environments where dust, moisture, and vibration are present, offering IP66 sealing and reinforced mounting tabs for structural integrity. It is engineered to support 12Vdc, 24Vdc, 36Vdc, and 48Vdc systems, making it versatile for various power configurations. The breaker features high-visibility ON/OFF controls and is constructed with stainless steel hardware for corrosion resistance. With a cycling endurance of 2,000 cycles at full current and high interrupt current ratings (5,000A at 14Vdc, 3,000A at 28Vdc), it provides robust protection against overcurrent conditions, particularly in systems with large battery banks. This product addresses the need for durable, high-performance circuit protection in demanding operational settings.
The Egis 87-Series 30 Amp Circuit Breaker has a maximum voltage rating of 48 VDC, making it suitable for 12Vdc, 24Vdc, 36Vdc, and 48Vdc applications.
This circuit breaker is rated IP66, indicating it is sealed against dust and water intrusion, ensuring reliable operation in harsh environments.
The circuit breaker includes stainless steel hardware and serrated flange nuts, designed for corrosion and vibration resistance in demanding applications.
The Egis 87-Series circuit breaker offers a high electrical and manual switching endurance of 2,000 cycles at full current.
4704-030 - Egis Mobile Electric EGIS 87-Series 30 Amp Circuit Breaker Surface Mount
