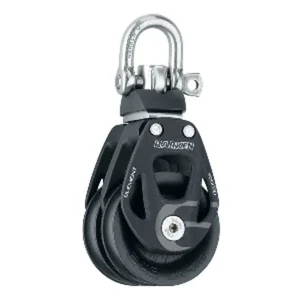

6238 - Harken 45mm Double Element Block w/Swivel

45mm Double Element Block with Swivel

Element blocks introduce sideplates that combine forged aluminum and compound curves for strength. They are simultaneously contemporary and very robust. Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks.

Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life.

Specifications:

• Sheave: 45mm / 1-3/4in
• Length: 108mm / 4-1/4in
• Weight: 180g / 6.3oz
• Shackle pin: 6mm / 1/4in
• Maximum line: 12mm / 1/2in
• Maximum working load: 875kg / 1929lb
• Breaking load: 1750kg / 3858lb

The Harken 45mm Double Element Block with Swivel is a robust component designed for applications requiring reliable line management. This block features sideplates constructed from forged aluminum with compound curves, hardcoat-anodized to resist corrosion, ensuring durability in demanding environments. It incorporates a tough composite bearing sheave, also resistant to corrosion, contributing to a long service life. The design prioritizes strength while minimizing material, pairing the necessary metal to protect the sheave with a proven journal bearing system. This unit, part number 6238, is suitable for professional settings where consistent performance and resistance to environmental factors are critical. It addresses the need for secure and efficient line handling, supporting a maximum working load of 875kg (1929lb) and accommodating lines up to 12mm (1/2in) in diameter.
