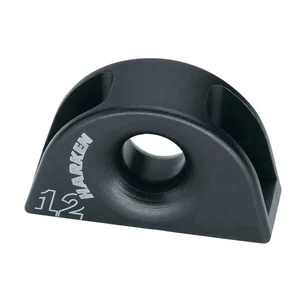

3274 - Harken 12mm Single Bolt-Down Fairlead for Boats

Harken 12mm Single Bolt-Down Fairlead

This fairlead is designed for use on boats ranging from 6 to 15 meters (20 to 50 feet). Made from high-strength 6061-T6 Hard Lube-anodized aluminum, it serves as an excellent shallow-angle line deflector while minimizing line wear with its smooth surfaces and radiused center holes.

Specifications:

• Length: 48 mm (1-7/8 in)
• Width: 18 mm (11/16 in)
• Weight: 28 g (0.99 oz)
• Maximum line diameter: 10 mm (3/8 in)
• Fasteners: 6 SH mm (1/4 SH in)
• Maximum working load: 908 kg (2000 lb)
• Breaking load: 1816 kg (4000 lb)
• Height: 28.2 mm (1-1/8 in)
• A: 32 mm
• Center hole diameter: 12 mm (15/32 in)

The Harken 12mm Single Bolt-Down Fairlead, part number 3274, is a specialized component designed for line management on marine vessels. Constructed from 6061-T6 Hard Lube-anodized aluminum, this fairlead offers a durable solution for deflecting lines at shallow angles. Its smooth surfaces and radiused center holes are engineered to minimize wear on lines up to 10 mm in diameter. With a maximum working load of 908 kg (2000 lb) and a breaking load of 1816 kg (4000 lb), it provides reliable performance for demanding applications. This unit is suitable for boats ranging from 6 to 15 meters (20 to 50 feet) and is secured via 6 SH mm (1/4 SH in) fasteners. It is intended for IT hardware resellers supporting clients in the marine industry who require robust and precise line handling equipment.
