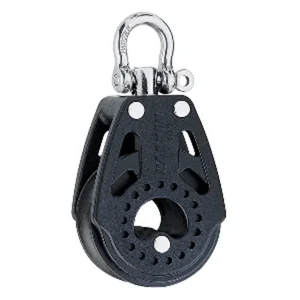

2636 - Harken 40mm Carbo Air Block w/Swivel

40mm Carbo Air Block with Swivel

Low-friction Carbo Air blocks are lightweight, strong, reliable—and affordable. Companions to the popular Harken Black Magic block line, these small, compact blocks have very high working loads for safe, easy trimming.

Specifications:

• Sheave: 40mm / 1-9/ 16in
• Length: 86mm / 3-3/8in
• Weight: 44g / 1.6oz
• Shackle pin: 4mm / 5/32in
• Maximum line: 10mm / 3/8in
• Maximum working load: 220kg / 485lb
• Breaking load: 735kg / 1620lb

The Harken 40mm Carbo Air Block with Swivel is a low-friction block designed for applications requiring efficient line management. This component, identified by part number 2636, is suitable for environments where lightweight yet robust hardware is necessary. It features a 40mm sheave and is capable of handling a maximum line diameter of 10mm. With a maximum working load of 220kg and a breaking load of 735kg, it provides a reliable solution for various rigging or tensioning tasks. Its compact design, measuring 86mm in length and weighing 44g, allows for integration into systems where space and weight are considerations. The block is designed to facilitate safe and controlled line trimming, making it appropriate for operational setups that benefit from high working loads within a small form factor.
