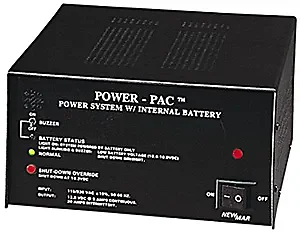

360-2007-0 - Newmar Power Pac 7AH Power Supply

Power-Pac
Designed for critical applications such as VHF shore stations that must remain on the air, even during a power outage. The 12 volt supply features built-in back-up batteries which are charged during normal operation and then continue to power radios even when AC power is lost.

• Highly regulated, low ripple output for noise-free radio operation
• Battery automatically comes on-line if AC fails
• Low battery alarm and disconnect, with override switch for emergency power

General Specifications

• Input 115/230 VAC, 50-60 Hz.
• Output:13.6 VDC @ 5A cont., 10A Int.
• Regulation: 1% line and load
• Ripple: 1% P-P
• Operating Temp: 0-40° C

Models:
Power-Pac 7 A/H (w/7 amp/hour battery), 18 lbs.
Power-Pac 14 A/H (w/14 amp/hour battery), 24 lbs.
Dimensions (both models): 5.3? H x 9.0? W x 10.5? D

The Newmar Power Pac 7AH Power Supply is a 12-volt power solution designed for critical applications requiring continuous operation, even during AC power interruptions. This unit integrates a power supply with built-in backup batteries, which are charged during normal AC operation. In the event of an AC power failure, the system automatically transitions to battery power, ensuring uninterrupted power delivery to connected equipment. It provides a highly regulated, low ripple output of 13.6 VDC at 5A continuous, suitable for noise-sensitive devices like VHF shore stations. Key features include an automatic battery switch-over, a low battery alarm, and a disconnect function with an emergency override switch. The unit, part number 360-2007-0, weighs 18 lbs and measures 5.3" H x 9.0" W x 10.5" D, making it a practical choice for maintaining operational continuity in essential IT and communication infrastructure.
