495-2370-1 - Newmar Power Newmar 2-3-70A Isolator 2AIT 3BATT 70AMP

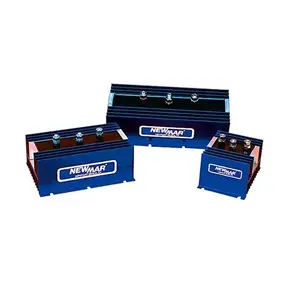

These heavy duty isolators allow charging multiple batteries automatically from one or two alternators, and prevent discharge or 'dumping" of one battery into another. Each battery is charged according to its need without overcharging. rated for 12-48 volt negative ground DC systems. feature conservatively rated diodes and a rustproof anodized aluminum heat sink case. Models are available for 70, 120 and 165 amp alternators.

Features:

• Heavy duty construction
• Rated for systems up to 48 volts DC, negative ground
• Rust-proof anodized aluminum case
• Stainless steel mounting hardware provided
• Protective covers provided for terminals

Performance Specifications

• Operating temperature: -40° to +80° C
• Duty cycle: Continuous rating to 50° C Derate linearly to 70% @ 80° C
• Temp. rise: 5° C at full rated current (mount vertically for optimum cooling)
• Voltage drop: 0.7V @ 50% load, 0.9V @ full load

Note: These battery isolators are not compatible with self exciting alternators. Please consult the manufacturer of your alternator if you are unsure of your configuration.

The Newmar 2-3-70A Isolator is a heavy-duty voltage converter designed for managing multiple battery banks within 12-48 volt negative ground DC systems. This unit facilitates automatic charging of up to three batteries from one or two alternators, preventing current discharge between battery banks. It ensures each battery receives appropriate charge without overcharging, which is critical for maintaining battery health and system reliability in demanding applications. Constructed with a rustproof anodized aluminum heat sink case and conservatively rated diodes, it offers continuous operation up to 50�C. The isolator is suitable for environments requiring robust power management, such as commercial vehicles, marine vessels, or remote power installations. It addresses the challenge of efficiently charging multiple batteries while isolating them to prevent mutual discharge, ensuring critical systems remain powered. The part number for this specific model is 495-2370-1, rated for 70 amp alternators.
