705-0561 - Trident Marine 316 SS Worm Gear Hose Clamp - Size 4 - 10-Pack

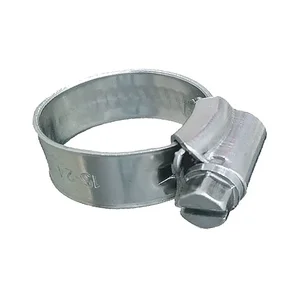

Trident Marine 316 SS Worm Gear Hose Clamp - Size 4 - 10-Pack

This premium quality non-perforated worm gear hose clamp is made from high tensile strength AISI 316 stainless steel, delivering superior performance for marine applications. The 9.7 mm (0.382") wide band is designed to provide maximum clamping force while preventing hose damage, thanks to its smooth, non-perforated surface and rolled edges. The compact, one-piece housing adds to its durability and strength, making it a reliable choice for securing hoses in various environments.

Key Features:

• Excellent resistance to corrosion and rust
• Screw head designed for easy adjustments with a 7 mm tool
• Long-lasting and safe for general-purpose hose applications

Recommendations:

• Always measure the hose's outer diameter before selecting the clamp size
• Use double clamps on each hose end for critical applications

Construction Details:

• Band & Housing: 316 Stainless Steel, 9.7 mm wide band, 0.8 mm thick
• Screw Drive: 316 Stainless Steel, 7.0 mm screw head

Specifications:

• SAE Size: 4
• Hose Inner Diameter: 1/4" � 5/16"
• Clamping Range: 7/16" � 21/32" (11-17 mm)
• Recommended Torque: 25-35 inch lbs

The Trident Marine 316 SS Worm Gear Hose Clamp, part number 705-0561, is a 10-pack of size 4 clamps designed for securing hoses in demanding environments. Constructed entirely from AISI 316 stainless steel, these clamps offer excellent resistance to corrosion and rust, making them suitable for marine and other general-purpose applications where durability is critical. Each clamp features a 9.7 mm wide, 0.8 mm thick non-perforated band with rolled edges, engineered to provide maximum clamping force while minimizing the risk of hose damage. The compact, one-piece housing further enhances strength and reliability. Adjustments are facilitated by a 7 mm screw head. These clamps are intended for hoses with an inner diameter of 1/4" � 5/16" and accommodate an outer diameter clamping range of 7/16" � 21/32" (11-17 mm). They are a practical choice for IT professionals and maintenance teams requiring robust hose fastening solutions.
