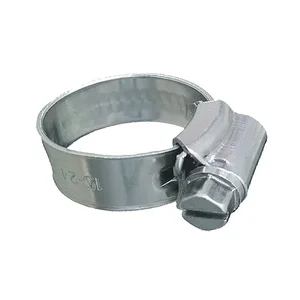

705-0121 - Trident Marine 316 SS Non-Perforated Worm Gear Hose Clamp - SAE Size 8

316 SS Non-Perforated Worm Gear Hose Clamp - SAE Size 8

This premium Marine Grade Worm Gear Hose Clamp is made from all AISI 316 Stainless Steel, offering high tensile strength and durability. The smooth, non-perforated 9.7 mm (0.382") wide band protects hoses from damage while providing exceptional clamping force. Featuring a compact, one-piece construction with a 14mm (0.55") wide housing, this clamp ranks among the best in clamping force ratings within its category.

Usage Recommendations:

• Make sure to measure the outer diameter of the hose before selecting the clamp size for proper fit.
• For critical applications, consider using double clamps on each hose end for added security.

The Trident Marine 316 SS Non-Perforated Worm Gear Hose Clamp, part number 705-0121, is designed for securing hoses in demanding environments. Constructed entirely from AISI 316 stainless steel, this clamp offers high tensile strength and resistance to corrosion, making it suitable for marine and other critical applications where durability is essential. Its non-perforated 9.7 mm wide band is engineered to protect hose surfaces from damage while delivering consistent clamping force. The compact, one-piece design features a 14mm wide housing and a 7 mm 316 SS screw head. With a clamping range of 5/8" to 15/16" (15-24 mm) and a recommended torque of 25-35 inch lbs, this clamp provides a secure connection for various hose applications. It is intended for IT and facilities managers requiring reliable hose securement in industrial or marine settings.
