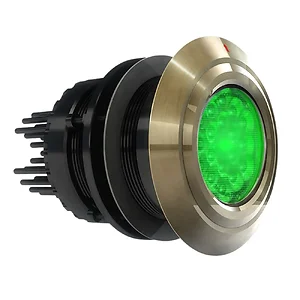

Oceanled 001-500750 3010XFM Pro LED Lighting - Sea Green

Pro Series XFM HD Gen2

XFM models, or Xchangeable Flush Mounts, are designed for easy exchange without the hassle of dismounting, making servicing simple if needed. Their low-profile head provides numerous mounting options, including retrofitting into most existing underwater light cut-outs. This results in no startup power surge, low heat generation, minimal maintenance, and an enhanced light output.

The 3010XFM HD Gen2 model boasts a brightness of 10,000 lumens, making it 43% brighter than its predecessor by utilizing the latest High Definition LEDs from Cree.

It is suitable for all hull types over 65' (20m) using 4 or more lights, spaced 3-6' (1-1.8m) apart. For metal hulls, consider adding the Delrin Isolation Sleeve accessory. The Deutsch plug-and-play connectors facilitate quick installation. Maintenance is straightforward; simply wipe off marine growth from the scratch-resistant Tritonium glass lens. Choose from three vibrant LED color options.

For a less bright alternative, consider the 2010XFM HD Gen2, or for a smaller cut-out ideal for transom mounts, opt for the 3010TH. If color-change capabilities are desired, check out our Colours models.

Mounting Recommendations:

• Boat Size: up to 65' (20M)
• Transom Spacing: 3-6' (1.0-1.8M)
• Transom Quantity: 4+
• Hull Spacing: 4-8' (1.2-2.4M)
• Installation Depth (to top of fixture): 10-12" (250-300mm)

Technical Details:

• Light Output Equivalent To: 2x100W HID Metal Halides
• Fixture Lumens: 10,000
• Current/Amp Draw (DC): 12VDC 10A / 24VDC 5A
• Current/Amp Draw (AC): 110VAC 50/60HZ 1.3A / 240VAC 50/60HZ 0.6A
