01395 - Wichard Marine 10mm Thimble Shackle with Allen Head Pin - Stainless Steel

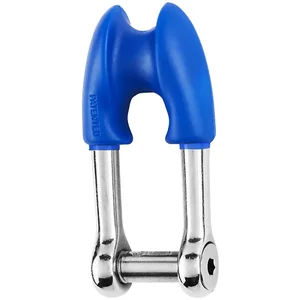

10mm Thimble Shackle with Allen Head Pin - Stainless Steel

Product Overview:

The 10mm thimble shackle is designed with an allen head pin forged in high-quality 316L stainless steel. This innovative design allows for easy rope splicing without the need for an additional thimble and ensures that the pin remains secure with its captive feature.

Applications:

• Ideal for mainsheet halyards
• Maximum rope size: 16 mm

Specifications:

• Materials: Grade 316 stainless steel
• Working Load: 3350 lb (1520 kg)
• Breaking Load: 11020 lb (5000 kg)
• Weight: 0.313 lb (142 g)

Dimensions:

• A: 2 1/64" (51 mm)
• B: 25/32" (20 mm)
• C: 25/64" (10 mm)
• D: 25/32" (20 mm)
• D diameter: 25/64" (10 mm)
• E: 5/16" (8 mm)
• F: 3 25/32" (96 mm)
• G: 1 39/64" (41 mm)

Note: The working load limit (WLL) for industrial applications is calculated as the breaking load divided by a safety factor of 5. The working load (WL) is intended for nautical applications.

*Sold individually

The Wichard Marine 10mm Thimble Shackle with Allen Head Pin, part number 01395, is a specialized lifting thimble designed for secure rope termination in nautical applications. Constructed from high-quality 316L stainless steel, this shackle features an integrated allen head pin that remains captive, preventing loss during installation or use. Its design facilitates direct rope splicing without requiring a separate thimble, streamlining rigging processes. With a working load of 3350 lb (1520 kg) and a breaking load of 11020 lb (5000 kg), it offers robust performance for demanding tasks. This shackle is suitable for applications such as mainsheet halyards and accommodates a maximum rope size of 16 mm. It provides a practical solution for IT hardware resellers supporting clients with marine or industrial rigging needs where reliable, high-strength stainless steel components are required.
