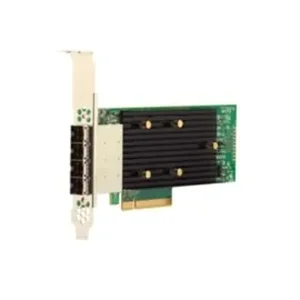

05-50013-00 - Broadcom LSI Logic Controller Card 05-50013-00 Tri-Mode Storage ADT 16Port Ext.12Gb/s SAS/SATA PCI Express

Lifecycle
Active Host Bus Type
x8 lane PCI Express 3.1 Physical Dimensions
6.600 inch x 2.712 inch Devices Supported
SAS/SATA: 1024 External Connectors
4 mini-SAS HD SFF8644 Operating Temperature
10^o to 55^oC Operating Voltage (V)
+12V +/-8%, 3.3V +/-9% OS Support
Microsoft Windows, Linux, VMware. PCI Power
Typical: 11.18W Cable Support
Passive Copper, Active copper, Active Optical I/O Controller
SAS3416 MTBF
> 4,500,000 hours at 40^oC Operating Humidity
20% to 80% Non-condensing Brackets
Full height and low profile Regulatory Certifications
Australia/New Zealand (AS/NZS CISPR 22), Canada (ICES -003, Class B), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 and 25), RoHS, Safety: EN60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE Data Transfer Rates
12Gb/s SAS-3 Compliant Item Dimension (L inchxW inchxH inch)
11 x 7 x 2

Weight
1.00 lb

Warranty Information
3 Years
