Wichard Marine 01411 4mm Captive Pin Long D Shackle - Grade 316L Stainless Steel

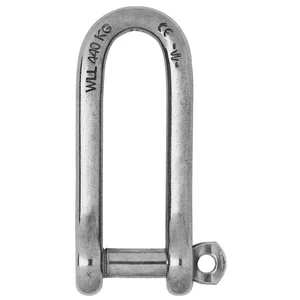

4mm Captive Pin Long D Shackle - Grade 316L Stainless Steel

Durable and Reliable: This captive pin long 'D' shackle is crafted from high-quality grade 316L stainless steel, ensuring it withstands harsh environments and resists corrosion.

Key Features:

• The captive pin remains connected to the body at all times, allowing for easy handling and use.
• The pin is securely locked into one of the indentations for added safety.
• Designed to minimize the risk of loosening due to vibrations, making it ideal for critical applications.
• Offers robust working and breaking loads for versatile usage.

Applications:

• Ideal for standard applications where additional length is required.
• Perfect for attachment purposes with various blocks and equipment.

Specifications:

• Working Load: 700 lbs
• WLL: 440 lbs
• Breaking Load: 2200 lbs
• Weight: 0.026 lbs

Dimensions:

• A (inch): 1-7/32"
• B (inch): 5/16"
• C (inch): 13/64"
• D (inch): 23/64"
• D diameter (inch): 5/32"
• E (inch): 5/32"
• F (inch): 1-39/64"
• G (inch): 55/64"
