Arco Marine 4011 Zeus A225S 3.15 Alternator - Isolated Ground

Special Order
Ships in 1-2 weeks
Condition: New

$805.94  $1,088.02
Free Shipping for this Item

Product Overview

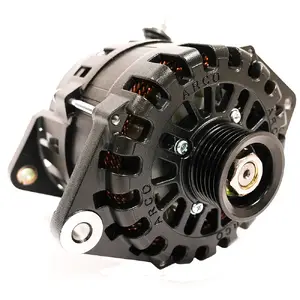

Introducing the Zeus A225S 3.15 Alternator with Isolated Ground

This alternator is designed to deliver the highest power output in its class, making it a perfect fit for marine, RV, military, and commercial applications.

Key Benefits:

  • Engineered for high energy production.
  • Rapidly charges large battery banks.
  • Operates at cooler temperatures, running 8-20% cooler than other alternators.
  • Features heat shedding coatings and dual cooling fans for enhanced performance.
  • Optimized for performance at idle speeds, reducing the need for a generator.
  • Made with advanced coatings that keep the alternator cooler.
  • Compatible with ARCO Zeus Bluetooth Alternator Regulator for maximum performance.
  • SAE J1171 Certified and proudly made in the USA.

Technical Specifications

  • Voltage: 12V
  • Field Type: P
  • Rotor Poles: 16
  • Stator Size: 130mm
  • Frame Size: Small
  • Weight: 12 lbs / 5.4 kg
  • Regulation: Internal/External
  • Output Voltage: 14.1V
  • Finish: Black Cerakote or E-coating
  • Cut-In RPM: 1,061 Alternator RPM
  • Maximum Alt RPM: 19,000
  • Battery Post: M8 Thread Post, Side Mount
  • Standard Pulley: 49K6
  • Pulley Mount: 17mm diameter shaft
  • Max Output (Cold, 9,000 RPM): 254 Amps
  • Sustained Cruising Output (Hot, 6,000 RPM): 187 Amps
  • Sustained Idle Output (Hot, 3,000 RPM): 157 Amps

Product Details

  • Manufacturer:
  • Model Number:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • ARCO Marine
  • 4011
  • New
  • 14 lbs
  • 10 X 9 X 10
  • Apr 18, 2026
  • Apr 25, 2025
Product Identifiers: Brand: Arco Marine • Part #: 4011
