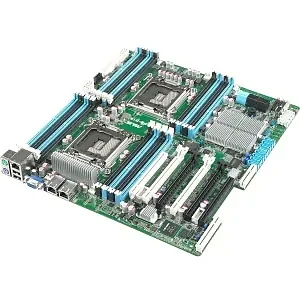

Product Overview
AMILY, DDR3 1066/1333/1600 UP TO 512GB RDIMM, 6 X PCI-E X16, 4 SATA 3GB/S, 2 SAT
Technical Specifications
Processor / System Bus
2 x Socket 2011
Intel Xeon processor E5-2600 product family
QPI 6.4 / 7.2 / 8.0 GT/s
Core Logic
Intel C602-A PCH Memory
Total Slots :
16 (4-channel per CPU, 8 DIMM per CPU)
Capacity :
Maximum up to 512GB RDIMM
Memory Type :
DDR3, 1066/1333/1600, RDIMM
DDR3, 1066/1333, UDIMM
DDR3, 1066/1333, LRDIMM
Memory Size :
2GB, 4GB, 8GB, 16GB RDIMM
2GB, 4GB, 8GB UDIMM
8GB, 16GB, 32GB LRDIMM Expansion Slots
Total Slot : 6
Slot Location 1 : PCI-E x16 (Gen3 X8 Link)
Slot Location 2 : PCI-E x16 (Gen3 X16 Link)
Slot Location 3 : PCI-E x16 (Gen3 X16 Link)
Slot Location 4 : PCI-E x16 (Gen3 X16 Link)
Slot Location 5 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 6 is occupied
Slot Location 6 : PCI-E x16 (Gen3 X8 Link), MIO supported
Additional Slot 1 : PIKE Slot for Stroage expansion Form Factor
EEB (12"x13")
ASUS Features
Fan Speed Control
Rack Ready (Rack and Pedestal Dual Use)
ASWM Enterprise Storage
SATA Controller :
Intel C602-A AHCI
4 x SATA2 3Gb/s ports
2 x SATA3 6Gb/s ports
Intel Rapid Storage Technology Enterprise(RSTe) (For Windows Only)(Support Software RAID 0, 1, 5, 10 )
LSI MegaRAID (For Linux/Windows) (Support Software RAID 0, 1, 10 )
SATA Controller :
Intel C602-A SCU
4 x SATA2 3Gb/s ports
Intel Rapid Storage Technology Enterprise(RSTe) (For Windows Only)(Support Software RAID 0, 1, 5, 10 )
SAS Controller :
ASUS PIKE 2008 8-port SAS2 6G RAID card (Optional)
ASUS PIKE 2008/IMR 8-port SAS2 6G RAID card(Optional)
ASUS PIKE 2108 8-port SAS2 6G RAID card (Optional) Networking
1 x Dual Port Intel Ethernet Controller i350-AM2 + 1 x Mgmt LAN
Graphic
Aspeed AST2300 with 16MB VRAM On Board I/O
1 x TPM header
1 x PSU Power Connector , 24-pin SSI power connector + 8-pin SSI 12V + 8-pin SSI 12V power connector
1 x Management Connector , Onboard socket for management card
2 x USB pin header , Up to 4 Devices
1 x Internal A Type USB Port
8 x Fan Header , 4pin
1 x Chassis Intruder
2 x Serial Port Header
2 x SMBus Back I/O Ports
2 x External USB Port
1 x VGA Port
2 GbE LAN + 1 Mgmt LAN
1 x PS/2, 1 KB/mouse
Management Solution
ASWM Enterprise
ASMB6-iKVM for KVM-over-Internet
EMI
US (FCC, CFR47 Part 15, Class B)
Europe (CE, EN55022 nd EN55024)
Australia (C-TICK) Accessories
Gift Box Pack :
1 x Users Guide
1 x ASUS Mainboard Support CD
1 x I/O Shield
1 x ASWM Enterprise SDVD
10 x SATA Data Cables
1 x ASMB6-iKVM Support CD
1 x ASMB6-iKVM User Guide
1 x USB to SATA DOM Power cable
Monitoring
CPU Temperature
Fan RPM Item Dimension (L"xW"xH"):
15 x 16.25 x 2.5
Weight:
8 lb
Warranty Information:
Asus 3 Years Limited
