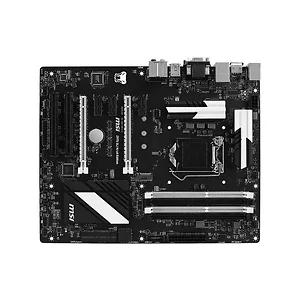

Msi Z97S SLI KRAIT EDITION LGA1150/ Intel Z97/ DDR3/ 2-Way CrossFireX & 2-Way SLI/ SATA3&USB3.0/ M.2&SATA Express/ A&GbE

Specifications

• Mfr Part Number: Z97S SLI KRAIT EDITION
• CPU: LGA1150
  • Supports the 5th/ 4th Generation Intel Core i7/ i5/ i3 Pentium/ Celeron Processors
  • FSB/Hyper Transport Bus 100MHz
• Chipset: Intel Z97 Express
• Memory: 4x DDR3-3200/(OC)/ 3100/ 3000/ 2800/ 2666/ 2600/ 2400/ 2200/ 2133/ 2000/ 1866/ 1600/ 1333/ 1066 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 32GB
• Slots: 2x PCI-Express 3.0 x16 Slots (run at x16/x0 or x8/x8), 3x PCI-Express 2.0 x1 Slots, 2x PCI Slots
• Multi-Graphics: Supports 2-Way AMD CrossFireX and 2-Way NVIDIA SLI Technology
• Storage:
  • SATA: 6x SATA3 Ports, Support RAID 0, 1, 5, 10; 1x SATA Express Port
  • M.2: 1x M.2 Port, Support 4.2/ 6/ 8cm Length Mode
• Audio: Realtek ALC892 7.1-Channel High Definition Audio CODEC
• LAN: Realtek 8111G Gigabit Ethernet Controller
• Ports: 6x USB 3.0 Ports (4 rears, 2 via header), 6x USB 2.0 Ports (2 rear, 4 via headers), 1x VGA Port, 1x DVI-D Port, 1x PS/2 Keyboard/Mouse Combo Port, 1x HDMI Port, 1x RJ45 LAN Port, Audio I/O Jacks
• Power Connector: 1x 24pin ATX Main Power Connector, 1x 8pin ATX 12V Power Connector
• Form Factor: ATX, 12.0 x 9.6 inch / 30.5 x 24.4 cm
