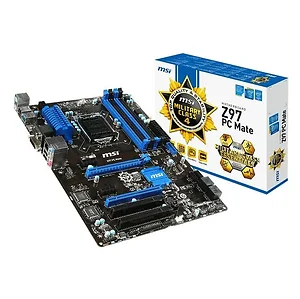

Msi Z97 PC MATE LGA1150/ Intel Z97/ DDR3/ CrossFireX/ SATA3&USB3.0/ A&GbE/ ATX Motherboard

Specifications

• Mfr Part Number: Z97 PC MATE
• CPU: LGA1150
  • Supports 5th/4th Generation Intel Core i7/ i5/ i3/  Pentium/ Celeron Processors
  • FSB/BCLK/Hyper Transport Bus 100MHz
• Chipset: Intel Z97 Express
• Memory: 4x DDR3-3000(OC)/ 2800/ 2666/ 2600/ 2400/ 2200/ 2133/ 2000/ 1866/ 1600/ 1333/ 1066 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 32GB
• Slots: 1x PCI-Express 3.0 x16 Slot, 1x PCI-Express 2.0 x16 Slot (runs at x4), 2x PCI-Express 2.0 x1 Slots, 2x PCI Slots
• Multi-Graphics: Supports AMD CrossFireX Technology
• Storage: 6x SATA3 Ports, Support RAID 0, 1, 5, 10
• Audio: Realtek ALC887 8-Channel High Definition Audio CODEC w/ Jack Sensing
• LAN: Realtek RTL8111G Gigabit Ethernet Controller
• Ports: 4x USB 3.0 Ports (2 rear, 2 via header), 8x USB 2.0 Ports (4 rear, 4 via headers), 1x PS/2 Keyboard Port, 1x PS/2 Mouse Port, 1x VGA Port, 1x DVI-D Port, 1x HDMI Port, 1x RJ45 LAN Port, Audio I/O Jacks
• Power Connector: 1x 24pin ATX Main Power Connector, 1x 8pin ATX 12V Power Connector
• Form Factor: ATX, 12.0 x 8.7 inch / 30.5 x 22.0 cm
