Technical Specifications

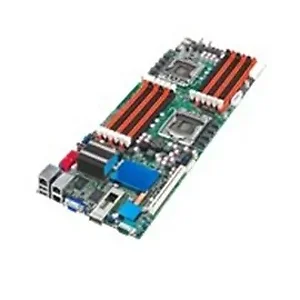

ASUS MOTHERBOARD Z8PH-D12 SE/QDRASMB4-IKVM LGA1366 XEON 5500 5600 SERVER BOARD RETAIL
Z8PH-D12 SE/QDRASMB4-IKVM is 6.3 inch in width a 16.7-inch in length, which occupies the least area compared to competitors' and is easy for two serverboards to fit in a 1U chassis. It provides high-bandwidth connectivity up to 40 Gb/s and world-class low latency with Infiniband. -------------------------
VENDOR: ASUS TeK
MPN: Z8PH-D12 SE/QDRASMB4-IKVM
UPC: 610839176069
KEY FEATURES BULK/RETAIL - Retail PROCESSOR - Intel Xeon Processor 5500/ 5600 Series PIN COUNT - Socket1366 CHIPSET TYPE - Intel 5520 + Intel ICH10R SUPPORTED RAM TECHNOLOGY - DDR3 GRAPHICS MEMORY - 8 MB WARRANTY - Limited 3-Year ONBOARD GRAPHICS - Aspeed AST2050 LAN - 2 x Intel 82574L RAID CONTROLLER - RAID 0/1/5/10 DETAIL SPECIFICATIONS
General
Product Type : Motherboard
Approximate Width : 6.3 in
Approximate Depth : 16.7 in
Compatible Processors : Quad-Core Xeon 5500 series, Quad-Core Xeon𗕰 series, Six-Core Xeon 5600 series, Dual-Core Xeon 5500 series
64-bit Processors Compatibility : Yes
Processor Socket : LGA1366 Socket
Multi-Core Support : Dual-Core / Quad-Core / Six-Core
Chipset Type : Intel 5520 / Intel ICH10R
Storage Controller : Serial ATA-300 (RAID)
Power Connectors : 20-pin main power connector
Processor
Installed Qty (Max Supported) : 0 ( 2 )
Memory
Supported RAM Technology : DDR3 SDRAM
RAM Installed ( Max ) : 0 MB
Supported RAM Speed : PC3-10600, PC3-6400, PC3-8500
RAM Features : Triple channel memory architecture
Video
Graphics Controller : ASPEED AST2050
Video Memory : 8 MB
Telecom / Networking
Networking : Network adapter - 2 x Intel 82574L - Ethernet, Fast Ethernet, Gigabit Ethernet, InfiniBand
Features
Hardware Monitoring : CPU core temperature, CPU fan tachometer
Expansion / Connectivity
Expansion Slot(s) : \ processor - LGA1366 Socket ΐ memory - DIMM 240-pin [ PCI Express 2.0 x16
Storage Interfaces : Intel ICH10R : Serial ATA-300 - connector(s): 4 x 7pin Serial ATA - 4 device(s) - RAID 0 / RAID 1 / RAID 10 / RAID 5
RAID Features : Intel Matrix RAID Technology
Interfaces : [ x serial - RS-232 - 9 pin D-Sub (DB-9) ] x Hi-Speed USB - 4 pin USB Type A [ x display / video - VGA - 15 pin HD D-Sub (HD-15) \ x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 [ x management - RJ-45 [ x network - InfiniBand - QSFP
Miscellaneous
Included Accessories : ASUS ASMB4-IKVM management card
Software Included : Drivers and utilities, ASUS System Web-based Management 2.0
Compliant Standards : CE, FCC Class A certified, C-Tick, EN55022, EN55024, FCC CFR47 Part 15
Package Dimensions
Dimension (L x W x H in inches) : 15 x 16.25 x 2.5 inch
Weight : 8 lb
Warranty
3 Years Limited
