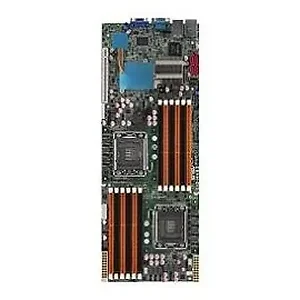

Asus Z8NH-D12 GA MOTHERBOARD Z8NH D12 INTEL5500 SOCKET1366 FSB1333 12DIMM DDR3 PCIE ECC REG ATX RET

ASUS MOTHERBOARD Z8NH-D12 INTEL 5500 LGA1366 FSB1333 12DIMM DDR3 PCI EXPRESS ECC REGISTERED ATX RETAIL
Z8NH-D12 is quite slim with its 6.3” x 16.7” form factor, which is easy for fitting two serverboards in one rack-mount chassis. With Intel® Xeon® 5500 series processor, DDR3 memory and ASUS innovative features such as EPU and ASMB4-iKVM, Z8NH-D12 still offers outstanding performance to customers. -------------------------
VENDOR: ASUS TeK
MPN: Z8NH-D12
UPC: 610839169481
KEY FEATURES BULK/RETAIL - Retail SERIAL ATA CONTROLLER - 4 x Serial ATA MAX BUS SPEED - 6.4GT/s WARRANTY - Limited 3-Year SLOTS - One PCI-E x16 PIN COUNT - Socket1366 PROCESSOR - Dual Intel Xeon𗔌 Series CHIPSET TYPE - Intel 5500 / ICH10R MAX RAM - 96 GB(RDIMM) / 48 GB (UDIMM) SUPPORTED RAM TECHNOLOGY - DDR3♈/1066/1333 Reg DIMM/ Unbuffered DIMM with ECC LAN - 2 x Intel󯸮L + 1 x Mgmt LAN ONBOARD GRAPHICS - Aspeed AST2050 DETAIL SPECIFICATIONS
Processor / System Bus
2 x Socket 1366 , Intel Xeon W5500 Series (130W) ,Intel Xeon X5500 Series (95W) , Intel Xeon E5500 Series (80W) , Intel Xeon L5500 Series (60W/38W) ,QPI 4.8 /5.86 /6.4 GT/s
Core Logic
Intel 5500 chipset IOH , Intel ICH10R I/O Controller
Form Factor
6.3" x 16.7"
ASUS Features
Rack Ready (Rack and Pedestal dual use), ASWM2.0, FAN speed control
Memory
Total Slots: 12 (3-channel per CPU, 6-DIMM per CPU)
Capacity: Maximum up to 96GB (RDIMM), Maximum up to 48GB (UDIMM)
Memory Type: DDR3 800/1066/1333 Reg DIMM/ Unbuffered DIMM with ECC
Memory Size: 1GB 2GB 4GB 8GB (RDIMM) 1GB 2GB 4GB (UDIMM)
Expansion Slots (follow SSI Location )
Total PCI/PCI-X/PCI-E Slots: 1
Slot Location 6: 1 PCI-E x16 (Gen2 x16 Link)
Storage
SATA Controller: Intel ICH10R: 4 SATA2 300MB/s ports ,Intel Matrix Storage (for Windows only) ,(Support software RAID 0, 1, 10 and 5) ,LSI MegaRAID (for Linux/Windows) ,(Support software RAID 0, 1, 10)
Networking
LAN: 2 x Intel 82574L + 1 x Mgmt LAN
Graphic
VGA: Aspeed AST2050 8MB
Onboard I/O Connectors
2 x PSU Connector (20-pin 12V) (Standard power supply is not supported), 1 x Management Connector : Onboard header for optional management card, 2 x USB Connectors (One for internal Type A USB connector ), 4 x Fan Header :4pin (4pin FAN Only), 2 x SMBus, 2 x Front LAN LED
Rear I/O Connectors
1 x External Serial Port, 2 x External USB Port, 1 x VGA Port, 2 x RJ-45 + 1 Management Port
Management Solution
Software: ASWM2.0
Monitoring
CPU Temperature, FAN RPM
EMI
US (FCC, CFR47 Part 15, Class A),Europe (CE, EN55022 and EN55024), Australia (C-TICK)
Environment
Operation temperature: 10C - 35C / Non operation temperature: -40C -ϊC
Non operation humidity: 20% 90% (Non condensing)
Accessories
Standard Bulk Pack (10pcs per Carton): 1 x ASUS Mainboard Support CD ,1 x Users Guide
Warranty
Limited 3 Years
