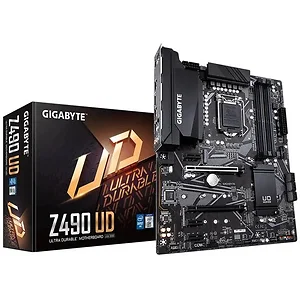

Gigabyte Z490UD Z490 UD

CPU
1.Support for 10th Generation Intel Core^TM i9 processors/Intel Core^TM i7 processors/Intel Core^TM i5 processors/Intel Core^TM i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1200 package
2.L3 cache varies with CPU
Chipset
1.Intel Z490 Express Chipset
Memory
1.Intel Core^TM i9/i7 processors:
Support for DDR4 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
2.Intel Core^TM i5/i3/Pentium/Celeron processors:
Support for DDR4 2666/2400/2133 MHz memory modules
3.4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
4.Dual channel memory architecture
5.Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
6.Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
7.Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
1.Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160 at 30 Hz
Support for HDMI 1.4 version and HDCP 2.3.
2.Maximum shared memory of 512 MB
Audio
1.Realtek ALC887 codec
2.High Definition Audio
3.2/4/5.1/7.1-channel
To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first.
4.Support for S/PDIF Out
LAN
1.Realtek GbE LAN chip (1000 Mbit/100 Mbit)
Expansion Slots
1.1 x PCI Express x16 slot, running at x16 (PCIEX16)
For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2.1 x PCI Express x16 slot, running at x4 (PCIEX4)
3.3 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology
1.Support for AMD Quad-GPU CrossFire^TM and 2-Way AMD CrossFire^TM technologies
Storage Interface
1.1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SB)
2.1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2M_SB)
3.6 x SATA 6Gb/s connectors
4.Support for RAID 0, RAID 1, RAID 5, and RAID 10
Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. 5.Intel Optane^TM Memory Ready
USB
Chipset:
1.1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
2.7 x USB 3.2 Gen 1 ports (5 ports on the back panel, 2 ports available through the internal USB header)
3.4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
1.1 x 24-pin ATX main power connector
2.1 x 4-pin ATX 12V power connector
3.1 x 8-pin ATX 12V power connector
4.1 x CPU fan header
5.4 x system fan headers
6.2 x addressable LED strip headers
7.2 x RGB LED strip headers
8.1 x Q-Flash Plus button
9.6 x SATA 6Gb/s connectors
10.2 x M.2 Socket 3 connectors
11.1 x front panel header
12.1 x front panel audio header
13.1 x S/PDIF Out header
14.1 x USB 3.2 Gen 1 header
15.1 x USB 2.0/1.1 header
16.1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
17.2 x Thunderbolt^TM add-in card connectors
18.1 x serial port header
19.1 x Clear CMOS jumper
Back Panel Connectors
1.1 x PS/2 keyboard/mouse port
2.1 x HDMI port
3.1 x USB 3.2 Gen 2 Type-A port (red)
4.5 x USB 3.2 Gen 1 ports
5.2 x USB 2.0/1.1 ports
6.1 x RJ-45 port
7.3 x audio jacks
I/O Controller
1.iTE I/O Controller Chip
H/W Monitoring
1.Voltage detection
2.Temperature detection
3.Fan speed detection
4.Overheating warning
5.Fan fail warning
6.Fan speed control
Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1.1 x 256 Mbit flash
2.Use of licensed AMI UEFI BIOS
3.PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1.Support for APP Center
Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
At BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
2.Support for Q-Flash Plus
3.Support for Q-Flash
4.Support for Xpress Install
Bundled Software
1.Norton Internet Security (OEM version)
2.Realtek 8118 Gaming LAN Bandwidth Control Utility
Operating System
1.Support for Windows 10 64-bit
Form Factor
1.ATX Form Factor, 30.5cm x 24.4cm
Item Dimension (L"x W"x H")
14 x 11 x 4
Weight
5.00 LB
Warranty Information
3 years
