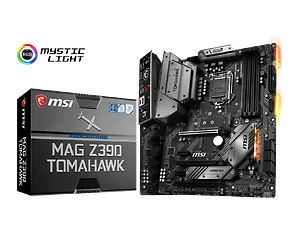

Product Overview
Military style with pre-installed IO shielding, extended heatsink design and M.2 Shield Frozr for better thermal solution, plus dual Intel LAN, Intel CNVi ready, Core Boost, DDR4 Boost, Core Boost, Twin Turbo M.2 and USB 3.1 Gen2 connector.
Technical Specifications
SOCKET
1151
CPU (MAX SUPPORT)
i9
CHIPSET
Intel Z390 Chipset
DDR4 MEMORY
4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz
MEMORY CHANNEL
Dual
DIMM SLOTS
4
MAX MEMORY (GB)
64
PCI-E X16
3
PCI-E GEN
Gen3
PCI-E X1
2
SATAIII
6
M.2 SLOT
2
RAID
0/1/5/10
TPM (HEADER)
1
LAN
1x Intel I219-V Gigabit LAN controller
1x Intel I211-AT Gigabit LAN controller
USB 3.1 PORTS (FRONT)
4(Gen1, Type A)
USB 3.1 PORTS (REAR)
4(Gen2, Type 3A+1C)
USB 2.0 PORTS (FRONT)
4
USB 2.0 PORTS (REAR)
2
SERIAL PORTS(FRONT)
1
AUDIO PORTS (REAR)
Realtek ALC892 Codec
DISPLAYPORT
1
HDMI
1
DIRECTX
12
FORM FACTOR
ATX
CROSSFIRE
Y
OPERATING SYSTEM
Support for Windows 10 64-bit
Item Dimension(L inchxW inchxH inch)
14 x 11 x 4
Weight
5.00lb
Warranty Information
3 years
