Product Overview

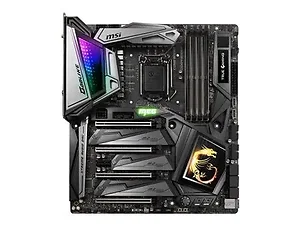

MSI MEG Z390 GODLIKE INTEL EATX GAMING MOTHERBOARD ONBOARD WIFI Overwhelming 18 phases VRM and brand-new infinity design, symbolizes the unlimited performance and power. Features Mystic Light Infinity, Dynamic Dashboard, Triple Turbo M.2 with Shield Frozr, XTREME Audio DAC and Dual Front USB 3.1 Gen2 Type-C connectors
Technical Specifications
SOCKET
1151
CPU (MAX SUPPORT)
i9
CHIPSET
Intel Z390 Chipset
DDR4 MEMORY
4600(OC)/ 4533(OC)/ 4500(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) /2800(OC)/ 2666/ 2400/ 2133 MHz
MEMORY CHANNEL
Dual
DIMM SLOTS
4
MAX MEMORY (GB)
64
PCI-E X16
4
PCI-E GEN
Gen3
PCI-E X1
1
SATAIII
6
M.2 SLOT
3
U.2
1
RAID
0/1/5/10
TPM (HEADER)
1
LAN
10/100/1000x1
USB 3.1 PORTS (FRONT)
2(Gen2, Type C), 4(Gen1, Type A)
USB 3.1 PORTS (REAR)
1(Gen2, Type C),3 (Gen2, Type A), 2(Gen1, Type A)
USB 2.0 PORTS (FRONT)
4
AUDIO PORTS (REAR)
Dual Realtek ALC1220 Codec
