Technical Specifications

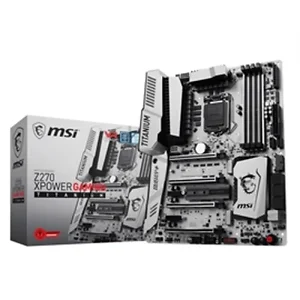

MSI Motherboard Z270 XPOWER GAMING TI Core i3/i5/i7 Z270 S1151 DDR4 SATA PCI Express USB ATX Retail
Supports 7th / 6th Gen Intel Core / Pentium / Celeron processors for LGA 1151 socket
Supports DDR4-4133+(OC) Memory
DDR4 Boost with Steel Armor: Give your DDR4 memory a performance boost
VR Ready and VR Boost: Best virtual reality game experience without latency, reduces motion sickness
OC DASHBOARD: The ultimate overclocking tool to experience easier on-the-fly overclocking
USB Xpander: For more controllable devices and flexible usage with USB 2.0 in-chassis connectors
Mystic Light Sync: Synchronize other RGB solutions with your gaming rig and control all LEDs in one click
Triple Turbo M.2, Steel Armor, M.2 Shield. Intel Optane Memory Ready, Turbo U.2, Lightning USB 3.1 Gen2
Audio Boost 4 with Nahimic 2: Reward your ears with studio grade sound quality for the most immersive gaming experience
Dual GAMING LAN with LAN Protect, powered by Intel : The best online gaming experience with lowest latency and bandwidth management
BIOS Flashback+: Easy BIOS recovery without the need of a CPU, memory and VGA card
Military Class 5, Guard-Pro: Latest evolution in high quality components for best protection and efficiency
MULTI-GPU: With Steel Armor PCI-E slots. Supports NVIDIA SLI & AMD Crossfire
In-Game Weapons: Game Boost, GAMING Hotkey, X-Boost, Xsplit Gamecaster
EZ Debug LED: Easiest way to troubleshoot
Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function
GAMING CERTIFIED: 24-hour on- and offline game and motherboard testing by eSports players
Socket
1151
CPU (Max Support)
i7
Chipset
Intel Z270 Chipset
DDR4 Memory
4000(OC)/ 3800(OC)/ 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133 MHz
Memory Channel
Dual
DIMM Slots
4
Max Memory (GB)
64
PCI-Ex16
4
PCI-E Gen
Gen3
PCI-Ex1
2
SATAIII
8
M.2 Slot
3
U.2
1
RAID
0/1/5/10
TPM (header)
1
LAN
10/100/1000x2
USB 3.1 ports (Front)
4(Gen1, Type A)
USB 3.1 ports (Rear)
1(Gen2, Type A),1 (Gen2, Type C), 4(Gen1, Type A)
USB 2.0 ports (Front)
4
USB 2.0 ports (Rear)
3
