Technical Specifications

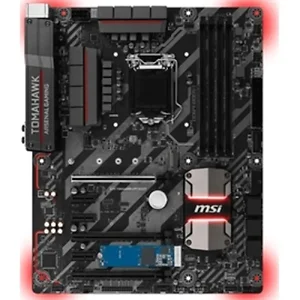

MSI Motherboard Z270 TOMAHAWK OPT BOOST-L Core i7 LGA1151 Z270 Max.64GB DDR4 PCI Express ATX Retail
AWARD WINNING DESIGN
Underlined by winning the prestigious iF DESIGN AWARD 2017, Arsenal GAMING motherboards design perfectly illustrates the evolution of this new generation of MSI motherboards.
Inspired by the concept of main battle tanks, the design, from its heatsinks to the military-themed PCB print, shows strength and sophistication.
Gather your weapons, ready up and conquer the battlefield!
Personalize your gaming rig
Customize and set up your own color scheme with RGB Mystic Light Sync. Select any of the colors from the palette using your smartphone or the MSI Gaming App to match your system style. Bored of the same colors? Simply change the complete look of your system in 1 second!
Stay cool while gaming
Cooling your PC is essential for reliable performance. Weve made sure to include enough fan headers with full control to allow you to cool your system any way you want.
Your in-game advantage
Outsmart and outperform your opponents in-game using an array of unique MSI GAMING tools. Clever hardware & software tools, created to keep you one step ahead of the competition and boost your skills.
CPU
Supports 7th/6th Gen Intel Core i3/i5/i7 processors, and Intel Pentium and Celeron processors for Socket LGA1151
Chipset
Intel Z270 Chipset
Main Memory
4x DDR4 memory slots, support up to 64GB
- 7th Gen processors support DDR4 3800(OC)/ 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133 MHz
- 6th Gen processors support DDR4 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(
Slot
3 x PCIe 3.0 x16 slots (support x16/x4/x1 modes)
3 x PCIe 3.0 x1 slots
Onboard Graphics
1 x HDMI port, supports a maximum resolution of 4096x2160 at 30Hz(7th CPU), 4096x2160 at 24Hz(6th CPU), 2560x1600 at 60Hz
1 x DVI-D port, supports a maximum resolution of 1920x1200 at 60Hz
Multi-GPU
Supports 2-Way AMD CrossFire Technology
Storage
IntelZ270 Chipset
6 x SATA 6Gb/s ports
2 x M.2 slots (Key M)
- Support up to PCIe 3.0 x4 and SATA 6Gb/s
- Support PCIe 3.0 x4 NVMe U.2 SSD with Turbo U.2 Host Card
- M2_1 slot supports 2242/ 2260 /2280/ 22110
RAID
IntelZ270 Chipset
Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID1 for M.2 PCIe storage devices
USB
ASMedia ASM2142 Chipset:
- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel
IntelZ270 Chipset:
- 8 x USB 3.1 Gen1 (SuperS
Audio
Realtek ALC892 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output
LAN
1 x Intel I219-V Gigabit LAN controller
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
- 2 x USB 2.0 connec
Back Panel I/O Ports
- 1 PS/2 keyboard/ mouse combo port
- 2 x USB 2.0 Type-A ports
- 1 x DVI-D port
- 1 x USB 3.1 Gen2 Type-A port
- 1 x USB 3.1 Gen2 Type-C port
- 4 x USB 3.1 Gen1 Type-A ports
- 1 x HDMI p
Mounting
9 mounting holes
Item Dimension (L inchxW inchxH inch)
14 x 11 x 4
Weight
4.00 lb
Warranty Information
3 years
