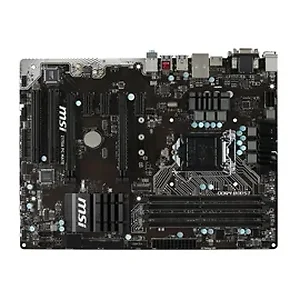

MSI Z170A PC MATE Intel Z170 Socket 1151 ATX Motherboard
- MSI Z170A PC MATE Intel Z170 Socket 1151 ATX Motherboard
- General Features:
- Supports 6th Gen Intel Core, Pentium, Celeron processors for LGA 1151 socket
- Supports DDR4 3200 memory OC
- DDR4 boost: give your DDR4 memory a performance boost
- USB 3.1 Gen 2 2X faster: USB 3.1 Gen 2 offers performance twice as fast as a regular USB 3.0 connection
- Turbo M.2 32Gb/s + Turbo U.2 ready + USB 3.1 Gen 2 Type-A + SATA 6Gb/s
- MULTI-GPU with VGA Armor: VGA Armor PCI-E slots. supports AMD Crossfire
- OC Genie 4: overclock in 1 Second
- Click BIOS 5: award-winning brand new Click BIOS 5 with high resolution scalable font
- Audio Boost: Reward your ears with studio grade sound quality
- Military Class 4: top quality and stability
- Guard-Pro: improved protection and power efficiency
- EZ Debug LED: easiest way to troubleshoot
- Overvoltage protection: prevent unforeseen damage
- 4K UHD support: ultra-high definition visual experience
- Windows 10 ready: 100% compatibility, performance, trusted and certified
- CPU:
- Supports 6th Gen Intel Core i3/i5/i7 processors, and Intel Pentium and Celeron processors for Socket LGA 1151
- Chipset:
- Intel Z170 Chipset
- Main Memory:
- Four (4) DDR4 memory slots, support up to 64GB
- Supports DDR4 3600(OC)/3200(OC)/3000(OC)/2800(OC)/2600(OC)/2400/2133 MHz
- Dual channel memory architecture
- Supports ECC, un-buffered memory
- ECC UDIMM memory (non-ECC mode)
- Supports Intel Extreme Memory Profile (XMP)
- Hyper DIMM support depends on the individual CPU physical characteristics
- Slots:
- Two (2) PCIe 3.0 x16 slots (support x16, x16/ x4 modes)
- Three (3) PCIe 3.0 x1 slots
- Two (2) PCI slots
- Onboard Graphics:
- One (1) HDMI ports, support a maximum resolution of 4096 x 2160 @24Hz
- Support for HDMI 1.4 version.
- One (1) DVI-D port, support a maximum resolution of 1920 x 1200 @60Hz
- One (1) VGA port, support a maximum resolution of 1920 x 1200 @60Hz
- Multi-GPU:
- Supports 2-Way AMD CrossFire Technology
- On-Board SATA:
- Intel Z170 Express Chipset
- Six (6) SATA 6Gb/s ports (2 ports reserved for SATA Express port)
- One (1) M.2 Key M Socket supports type 2280/2260/2242 storage devices in both PCIE Gen3 x4 and SATA mode
- Supports PCIe 3.0 x4 and SATA 6Gb/s standards, 4.2cm/ 6cm/ 8cm length M.2 SSD cards
- Supports PCIe 3.0 x4 NVMe Mini-SAS SSD with Turbo U.2 Host Card
- One (1) SATAe port (PCIe 3.0 x2)
- Support RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices
- Supports Intel Smart Response Technology for Intel Core processors
- USB:
- ASMedia ASM1142 Chipset
- Two (2) USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports onthe back panel
- Intel Z170 Chipset:
- Six (6) USB 3.1 Gen 1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB 3.1 Gen 1 connector)
- Four (4) USB 2.0 (High-speed USB) ports available through the internal USB 2.0 connectors)
- Audio:
- Realtek ALC887 Codec
- 7.1-Channel High Definition Audio
- LAN:
- One (1) Realtek RTL8111H Gigabit LAN controller
- Back Panel I/O Ports:
- One (1) PS/2 mouse port
- One (1) PS/2 keyboard port
- One (1) VGA port
- One (1) DVI-D port
- One (1) HDMI port
- One (1) LAN (RJ45) port
- Four (4) USB 3.1 Gen1 ports
- Two (2) USB 3.1 Gen2 ports
- Three (3) audio jacks
- Internal I/O Connectors:
- One (1) 24-pin ATX main power connector
- One (1) 8-pin ATX 12V power connector
- Six (6) SATA 6Gb/s connectors
- One (1) SATAe connector (is compatible with SATA1~2)
- Two (2) USB 2.0 connectors (support additional 4 USB 2.0 ports)
- One (1) USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen 1 ports)
- Two (2) 4-pin CPU fan connectors
- Three (3) 4-pin system fan connectors
- One (1) Front panel audio connector
- Two (2) Front panel connectors
- One (1) TPM module connector
- One (1) Chassis Intrusion connector
- One (1) Serial port connector
- One (1) Parallel port connector
- One (1) Clear CMOS jumper
- Unit Dimensions
- ATX form factor: 12 x 8.9-inches
- Notes:
- Model: Z170A PC MATE
- UPC: 8 24142 11936 5
- Product Requirements:
- ATX case
- Power supply
- Supported CPU
- Supported RAM
- Rest of the system
- Grade A:
- Device is in close to new condition, but will certainly have one or two minor blemishes that are almost unnoticeable to the human eye. This device will be fully tested and fully functional.
Package Includes- MSI Z170A PC MATE Intel Z170 Socket 1151 ATX Motherboard
- Drivers and software DVD
- Two (2) SATA cables
- I/O shield
