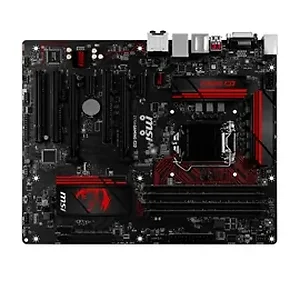

Msi Z170A-GAMING-M3-R Z170A GAMING M3 Intel Z170 Express Socket 1151 ATX Motherboard w/HDMI, DVI, Audio, GbLAN & RAID

Out of Stock
Condition: New

$177.98  $240.27

AUTHORIZED
 Free Shipping for this Item

Product Overview

Msi Z170A-GAMING-M3-R Z170A GAMING M3 Intel Z170 Express Socket 1151 ATX Motherboard w/HDMI, DVI, Audio, GbLAN & RAID

Technical Specifications

  • MSI Z170A GAMING M3 Socket 1151 ATX Motherboard

  • General Features:
  • Supports 6th Gen Intel Core, Pentium, Celeron processors for LGA 1151 socket
  • Supports DDR4-3600+(OC) memory
  • DDR4 Boost: give your DDR4 memory a performance boost
  • USB 3.1 Gen2 2X FASTER: USB 3.1 Gen2 offers performance twice as fast as a regular USB 3.0 connection
  • Turbo M.2 32Gb/s + Turbo U.2 ready + USB 3.1 Gen2 Type-A + SATA 6Gb/s
  • GAMING LAN with LAN Protect, powered by Killer: the best online gaming experience with lowest latency
  • Audio Boost 3: reward your ears with studio grade sound quality
  • Nahimic Audio Enhancer: immersive sound quality that pushes the limits of reality
  • Game Boost: This one goes up to eleven; generate more FPS in games with 1 push of a button
  • OBS Streaming software: share your gaming achievements with the world!
  • SteelSeries certified: optimized for SteelSeries gaming gear
  • Military Class 5: the latest evolution in high quality components featuring the brand new Titanium Chokes
  • MULTI-GPU with VGA Armor: VGA Armor PCI-E slots. Supports AMD Crossfire
  • Click BIOS 5: award-winning brand new Click BIOS 5 with high resolution scalable font
  • Tested by eSports players for the best gaming experience

  • CPU:
  • Supports 6th Gen Intel Core i3/i5/i7 processors, and Intel Pentium and Celeron processors for Socket LGA1151

  • Chipset:
  • Intel Z170 Express Chipset

  • Main Memory:
  • Four (4) DDR4 memory slots, support up to 64GB
  • Supports DDR4 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133 MHz
  • Dual channel memory architecture
  • Supports ECC, un-buffered memory
  • ECC UDIMM memory (non-ECC mode)
  • Supports Intel Extreme Memory Profile (XMP)

  • Slots:
  • Two (2) PCIe 3.0 x16 slots
  • Two (2) PCIe 3.0 x1 slots
  • Three (3) PCI slots

  • Onboard Graphics:
  • One (1) HDMI port, supports a maximum resolution of 4096 x 2160 @24Hz, 2560 x 1600 @60Hz
  • Support for HDMI 1.4 version.
  • One (1) DVI-D port, supports a maximum resolution of 1920 x 1200 @60Hz

  • Multi-GPU:
    Supports 2-Way AMD CrossFire Technology

  • Storage:
  • Intel Z170 Express Chipset
  • Six (6) SATA 6Gb/s ports
  • One (1) M.2 Key M Socket supports type 2280/2260/2242 storage devices in both PCIE Gen3 x4 & SATA mode
  • Supports PCIe 3.0 x4 and SATA 6Gb/s standards, 4.2cm/ 6cm/ 8cm length M.2 SSD cards
  • Supports PCIe 3.0 x4 NVMe Mini-SAS SSD with Turbo U.2 Host Card (optional)
    • Two (2) SATAe port
    • Supports RAID 0, RAID1, RAID 5 and RAID 10
    • Supports Intel Smart Response Technology for Intel Core processors
    • The Turbo U.2 Host Card is not included, please purchase separately
    • SATAe port is backward compatible with SATA

  • USB:
  • Intel Z170 Express Chipset:
  • Two (2) USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports on the back panel
  • Six (6) USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)
  • Four (4) USB 2.0 (High-speed USB) ports (2 ports on the back panel, 2 ports available through the internal USB connectors)

  • Audio:
  • Realtek ALC1150 Codec
  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output

  • LAN:
  • One (1) Killer E2400 Gigabit LAN controller

  • Internal I/O Connectors:
  • One (1) 24-pin ATX main power connector
  • One (1) 8-pin ATX 12V power connector
  • Six (6) SATA 6Gb/s connectors
  • Two (2) SATAe connectors
  • One (1) USB 2.0 connector (supports additional 2 USB 2.0 ports)
  • One (1) USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
  • Two (2) 4-pin CPU fan connectors
  • Three (3) 4-pin system fan connectors
  • One (1) Front panel audio connector
  • Two (2) Front panel connectors
  • One (1) TPM module connector
  • One (1) Chassis Intrusion connector
  • One (1) Clear CMOS jumper
  • One (1) Serial port connector
  • One (1) Parallel port connector
  • One (1) Slow mode switch

  • Back Panel I/O Ports:
  • One (1) PS/2 keyboard/ mouse port
  • Two (2) USB 2.0 ports
  • One (1) DVI-D port
  • One (1) HDMI port
  • Two (2) USB 3.1 Gen2 ports
  • Four (4) USB 3.1 Gen1 ports
  • One (1) LAN (RJ45) port
  • One (1) Optical S/PDIF OUT connector
  • Five (5) OFC audio jacks

  • BIOS:
  • The motherboard BIOS provides ""Plug & Play"" BIOS which detects the peripheral devices and expansion cards of the board automatically.
  • The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.

  • Unit Dimensions:
  • ATX form factor: 12 x 9.6-inches

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • MSI
  • Z170A-GAMING-M3-R
  • 824142120552
  • New
  • 4.5 lbs
  • 0 X 0 X 0
  • Feb 19, 2026
  • Dec 30, 2025
Product Identifiers: Brand: Msi • Part #: Z170A-GAMING-M3-R • UPC: 824142120552 • Category: Motherboards
