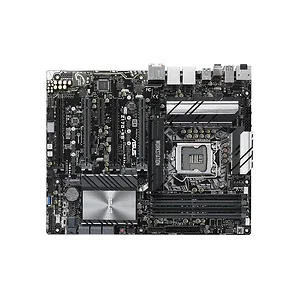

Asus Z170 WS LGA1151/ Intel Z170/ DDR4/ Quad CrossFireX & Quad SLI/ SATA3&USB3.1/ M.2&U.2/ A&2GbE/ ATX Motherboard

Ultimate graphics power : Accommodates quad PCI Express 3.0 graphics cards at x16 speed
Ultimate Transfer Speeds : The latest 10Gb/s USB 3.1, Dual 32Gbit/s M.2 x4 and U.2 on board
Ultimate Server Design : 12K capacitors, ProCool connectors, diverse VGA, RAID and LAN cards suppor
t5-Way Optimization: One click optimizes your entire system with a dedicated water-pump header on board
ASUS Pro Clock Technology: Extends base clocks and improves stability for extreme overclocking

CPU
Intel Socket 1151 for 6th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0

Chipset
Intel Z170

Memory
4 x DIMM, Max. 64GB, DDR4
3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)

Graphic
Integrated Graphics Processor- Intel HD Graphics support
Multi-VGA output support : HDMI/DisplayPort ports
- Supports HDMI with max. resolution 4096 x 2160 at 60 Hz / 4096 x 2160 at 24 Hz
- Supports DisplayPort with max. resolution 4096 x 2304 at 24 Hz / 4096 x 2304 at 60 Hz
Maximum shared memory of 512 MB
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
Supports up to 2 displays simultaneously
DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays

Multi-GPU Support
Supports NVIDIA Quad-GPU SLI Technology
Supports NVIDIA 4-Way SLI Technology
Supports AMD Quad-GPU CrossFireX Technology
Supports AMD 4-Way CrossFireX Technology

Expansion Slots
4 x PCIe 3.0/2.0 x16 (single at x16, dual at x16/x16 mode, triple at x16/x8/x8 mode or dual x8/x8/x8/x8 mode)
1 x PCIe 3.0 x4 (max at x4 mode)

Storage
6 x SATA 6Gb/s port(s), gray
2 x M.2 x4 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA PCIE mode)
1 x U.2 connector
Support Raid 0, 1, 5, 10
Intel Rapid Storage Technology supports

LAN
Intel I219-LM , 1 x Gigabit LAN Controller(s)
Intel I210-AT, 1 x Gigabit LAN
Gigabit Intel LAN Connection- 802.3az Energy Efficient Ethernet (EEE) appliance
ASUS Turbo LAN Utility

Audio
Realtek ALC1150 8-Channel High Definition Audio CODEC featuring Crystal Sound 3
- Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 112 dB SNR stereo playback output (Line-out at rear) and 104 dB SNR recording input (Line-in)

USB Ports
Intel Z170 chipset :
5 x USB 3.0/2.0 port(s) (1 vertical Type A Connector, 4 at mid-board)
6 x USB 2.0/1.1 port(s) (4 at back panel, black, 2 at mid-board)
ASMedia USB 3.0 Hub :
4 x USB 3.0/2.0 port(s) (4 at back panel, blue)
ASMedia USB 3.1 controller :
1 x USB 3.1/3.0/2.0 port(s) (1 at back panel, teal blue, Type-A)
1 x USB 3.1/3.0/2.0 port(s) (1 at back panel, , Type-C, Reversible)

Operating System Support
Windows 10 , 64bit
Windows 8.1 , 64bit
Windows 7

Manageability
WfM 2.0, DMI 3.0, WOL by PME, PXE

Support Disc
Drivers
ASUS Utilities
EZ Update

Form Factor
ATX Form Factor

Item Dimension (L"xW"xH")
15 x 12 x 4

Weight
5 lb

Warranty Information
ASUS 3 Years with 1st Year ARS
