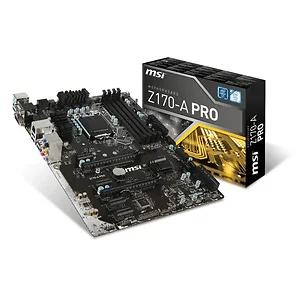

MSI Z170-A PRO LGA1151/ Intel Z170/ DDR4/ 2-Way CrossFireX/ SATA3&USB3.1/ M.2&SATA Express/ A&GbE/ ATX Motherboard

•  Supports 6th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1151 socket
•  Supports DDR4-3200 Memory (OC)
•  DDR4 Boost: Give your DDR4 memory a performance boost
•  Turbo M.2 32Gb/s + Turbo U.2 ready + SATA Express 16Gb/s + SATA 6Gb/s
•  MULTI-GPU with VGA Armor: VGA Armor PCI-E slots. Supports AMD Crossfire™
•   OC Genie 4: Overclock in 1 Second
•  Click BIOS 5: Award-winning brand new Click BIOS 5 with high resolution scalable font
•  Audio Boost: Reward your ears with studio grade sound quality
•  Military Class 4: Top Quality & Stability
•  Guard-Pro: Improved Protection and Power Efficiency
•  EZ Debug LED: Easiest way to troubleshoot
•  Overvoltage Protection:Prevent Unforeseen Damage
•  4K UHD Support: Ultra-high Definition Visual Experience
•  Windows 10 Ready: 100% Compatibility, Performance, Trusted and Certified.

Socket
1151

CPU (Max Support)
i7

Chipset
Intel Z170

DDR4 Memory
3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133 MHz

Memory Channel
Dual

DIMM Slots
4

Max Memory (GB)
64

PCI-Ex16
2

PCI-E Gen
Gen3(16)

PCI-Ex1
4

SATA Express
2

SATAIII
6

M.2 port
1

RAID
0/1/5/10

TPM (header)
1

LAN
10/100/1000 x 1

USB 3.1 ports(Front)
4(Gen1)

USB 3.1 ports (Rear)
4(Gen1)

USB 2.0 ports (Front)
4

USB 2.0 ports (Rear)
2

Audio ports (Rear)
6

DisplayPort
1

VGA
1

DVI
1

DirectX
DX12

Form Factor
ATX

CrossFire
Yes

Item Dimension (L inchxW inchxH inch)
14 x 11 x 4

Weight
4.00lb

Warranty Information
3 years
