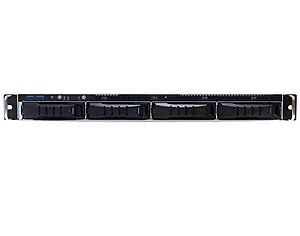

XP1-S101UR01 - Aic Server XP1-S101UR01 1U 4Bay Xeon C620 4x3.5HS 2x2.5OS 550W Brown Box

Motherboard
AIC Server Board Ursa Processor
Processor Support : Intel Xeon Scalable Processors (Skylake and next gen. CPU)
Supports CPU TDP up to 205W
UPI Speeds: 10.4 GT/s, 9.6 GT/s
Socket Type : Socket P0 (LGA-3647 Socket) Chipset Support
Intel Lewisburg C620 series Chipset System Memory
DDR4 2666/2400 (1DPC/2DPC) MHz (feature supports up to DDR4 2933MHz by next gen. process upgrade)
Total 24 memory slots 6 channel per CPU (2DPC)
Up to 3TB 3DS ECC RDIMM/LRDIMM
Intel NVM DIMM (Apache Pass) support by next gen. Purley Refresh CPU Front Panel
System power on/off
System reset
2 x USB 3.0 Type A
System IO LEDs
Power status
System alert
System ID Drive Bays
External : 3.5 hot swap x 4 (6G SATA)
Internal : 2 x 2.5 OS Backplane
1 x 4-port 12G SAS backplane with 1 x SFF-8643 connector Expansion Slots (PCIe 3.0)
2 x16 slots (1 FHHL, 1 LP)
2 x OCP Mezzanine support:
1 PCIe Gen3 x16 (V2.0)
1 PCIe Gen3 x8 (V1.2) System BIOS
BIOS Type :
AMI UEFI BIOS
BIOS Features :
ACPI
PXE
WOL
AC loss recovery
IPMI KCS interface
SMBIOS
Serial console redirection
BIOS Boot Specification
BIOS Recovery Mode
SRIOV On-board Devices
SATA :
Intel Lewisburg PCH on-chip solution
12 x SATA 6.0 Gb/s (by 3 x Slimline) + 2 x SATA 6.0 Gb/s (by 2 x SATA 7 pin)
IPMI :
Aspeed AST2500 Advanced PCIe Graphics and Remote Management Processor
Baseboard Management Controller
Intelligent Platform Interface 2.0 (IPMI 2.0)
iKVM, Media Redirection, IPMI over LAN, Serial over LAN
SMASH Support
HTML5
Network Controller :
Intel PCH (C622) Integrated 10GbE LAN Controller support 2 x 10GbE SFP+
Networking options provided via OCP Mezzanine extension
Broadcom BCM54612 (GbE) for BMC dedicated management port
Graphics :
Aspeed AST2500 Advanced PCIe Graphics and Remote Management Process
PCIe VGA/2D Controller
1920x1200 at 60Hz 32bpp Rear I/O
LAN:
2 x 10GbE SFP+
1 x GbE RJ45 dedicated to BMC management
USB:
2 x USB 3.0 Type A
VGA:
1 x external DB-15 VGA port
Serial Port:
1 x external DB-9 COM port Power Supply
550W 1+1 redundant power supply 80+ Platinum
AC INPUT : 100-240V,50/60Hz,7-3.5A
800W 1+1 redundant power supply 80+ Platinum (BTO)
AC INPUT : 100-240V,50/60Hz,10-5A System Cooling
7 x 40x28mm hot swap fans
(Optional 7 x 40x56mm hot swap fans, BTO) System Management
IPMI : Aspeed AST2500 Advanced PCIe Graphics Remote Management Processor
Baseboard Management Controller
Intelligent Platform Interface 2.0 (IPMI 2.0)
iKVM, Media Redirection, IPMI over LAN, Serial over LAN
SMASH Support Environmental Specifications
Storage temperature : -10^oC(14^oF) - 60^oC(140^oF)
Operating temperature : 0^oC(32^oF) - 35^oC(95^oF)
Storage operating humidity : 5%-95% non-condensing Mounting
Standard : 28" tool-less slide rail Item Dimension (L"xW"xH")
45 x 25 x 11

Weight
90 lbs

Warranty Information
3 Years
