ASUS XONAR SE Sound Card 192kHz 24-bit hi-res with 116dB SNR | Aztek Computers
Business, government & education accounts

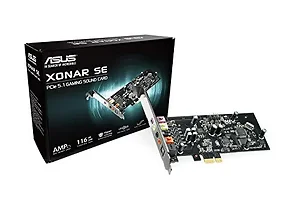

ASUS XONAR SE Sound Card 192kHz 24-bit hi-res with 116dB SNR PCI-Express Gaming Retail

SKU: HZNHEU3PFF |  Mfg. Part: XONAR SE  | UPC: 192876040560  |  0 Reviews  |  Share

Special Order
Ships in 1-2 weeks / 5 Sold
Condition: New

$67.84  $91.58

AUTHORIZED
Need 10+? Request a volume quote
 Free Shipping for this Item

Product Overview

Technical InformationAudio Processor Manufacturer: C-MediaAudio Processor Model: 6620AHost Interface: PCI ExpressSignal to Noise Ratio (SNR): 116 dBMaximum Playback Sampling Rate: 3 Byte 192 kHzMaximum Recording Sampling Rate: 3 Byte 192 kHzDAC Data Width: 24 bitSound Channels: 5.1Interfaces/PortsNumber of Audio Line In: 1Number of Audio Line Out: 3Physical CharacteristicsForm Factor: Internal

Technical Specifications

  • Audio Interface: PCI Express
  • Audio Performance: -Output Signal-to-Noise Ratio (A-Weighted) (Front-out):
  • 116 dB
  • -Input Signal-to-Noise Ratio (A-Weighted):
  • 110 dB
  • -Output THD+N at 1kHz (Front-out):
  • 0.00251 %(-92 dB)
  • -Input THD+N at 1kHz:
  • 0.00251 %(-92 dB)
  • -Frequency Response (-3dB, 24bit/192KHz input):
  • 10 Hz to 87 KHz
  • -Output/Input Full-Scale Voltage:
  • Headphone output: 2 Vrms (5.65 Vp-p)
  • Chipset: -Audio Processor:
  • C-Media USB2.0 6620A High-Definition Sound Processor (Max. 192KHz/24bit)
  • Digital-to-analog Converter(DAC): Realtek S1220A (120dB SNR, Max. 192KHz/24bit)
  • Sample Rate and Resolution: -Analog Playback Sample Rate and Resolution:
  • 44.1K/48K/96K/192KHz at 16bit/24bit
  • -Analog Recording Sample Rate and Resolution:
  • 44.1K/48K/96K/192KHz at 16bit/24bit
  • -S/PDIF Digital Output:
  • 44.1K/48K/96K/192KHz at 16bit/24bit
  • -ASIO 2.2 Driver Support:
  • 44.1K/48K/96K/192KHz at 16bit/24bit
  • Connectivity: -Analog Output:
  • 3 x 3.5 mm jack (1/8 inch) (Front out/Side out/Rear out)
  • -Analog Input:
  • 1 x 3.5 mm jack (1/8 inch) (Line-in/Mic-in)
  • -Digital:
  • 1 x S/PDIF out (1 x Optical (Toslink))
  • Special Features: -Smart Volume NormalizerTM
  • -Xear 3DTM Virtual Speaker Shifter
  • -Xear SurroundTM
  • -Magic VoiceTM
  • Operating System: -Windows 10
  • -Windows 8.1
  • -Windows 7
  • Accessories: Low-profile bracket x 1
  • Driver CD x 1
  • Quick start guide x 1
  • Item Dimension (L inchxW inchxH inch): 10 x 7 x 3
  • Weight: 2.00lb
  • Warranty Information: 3 Years

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Shipping Weight:
  • Package Size:
  • Country of Origin:
  • Category:
  • Date First Available:
  • ASUS
  • XONAR SE
  • B07HCX1NY9
  • 192876040560
  • New
  • 0.6 lbs
  • 9 x 2 x 7 in
  • NN
  • Sound Cards
  • February 29, 2020
