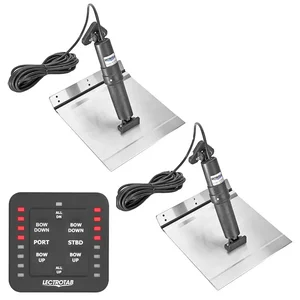

XKASL9X9A - Lectrotab Aluminum Alloy Trim Tab Kit with One-Touch Control

Lectrotab Aluminum Alloy Trim Tab Kit with One-Touch Control

This trim tab kit is designed specifically for aluminum hulled boats, providing an economical solution for improved performance and stability on the water. Each tab is constructed with a robust "no-break" polypropylene hinge and is coated with a corrosion-resistant epoxy for durability.

Featuring a precision-engineered actuator, the kit ensures quiet operation and a maintenance-free, non-hydraulic design. Installation is straightforward with the actuator assembly provided in a non-metallic, permanently sealed housing, eliminating the need for internal components.

Importantly, this system avoids the potential issues associated with hydraulic trim tabs as there is no oil leakage. The actuator is compatible with either a standard or low-profile transom mounting bracket.

With Lectrotab's one-touch leveling control, operating your trim tabs has never been easier.

Key Specifications:

• Trim Tab Size: 9" x 9" (23 x 23 cm)
• Recommended Boat Length: 14' to 19' (4 to 6 M)
• Made from Marine-grade 6005-T5 Aluminum Alloy
• Actuator Voltage: 12 V
• Stroke Length: 2.25" (57 mm)
• Cable Length: 23' (7 M)
• Vertical Height of Actuator: 11.875" (302 mm)
• Rocker Switch Dimensions: 3" x 3" (77 x 77 mm)
• Rocker Switch Cutout: 2.25" x 2.5" (57 to 64 mm)
• Operating Voltage for Switch: 12 or 24 V

The Lectrotab Aluminum Alloy Trim Tab Kit with One-Touch Control, part number XKASL9X9A, is an IT hardware component designed for integration into aluminum-hulled boats between 14 to 19 feet in length. This kit provides a non-hydraulic solution for enhancing boat performance and stability. Each 9" x 9" trim tab is constructed from marine-grade 6005-T5 aluminum alloy with a corrosion-resistant epoxy coating and features a robust "no-break" polypropylene hinge. The system utilizes a 12V precision-engineered actuator with a 2.25" stroke length, housed in a permanently sealed, non-metallic casing, which simplifies installation and eliminates concerns related to hydraulic oil leakage. Operation is managed via a one-touch leveling control rocker switch, compatible with 12V or 24V systems. This product is suitable for marine businesses or IT departments managing vessel fleets that require a durable, low-maintenance trim tab system to optimize boat handling and fuel efficiency.
