Condition: New

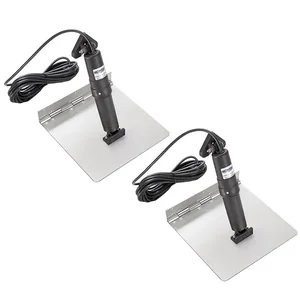

Lectrotab XKA 9" x 24" Stainless Steel Trim Tab Kit
The Lectrotab XKA stainless steel trim tab kit is designed for ultimate strength and reliability. Featuring a unique continuous rolled and pinned hinge, these stainless steel tabs eliminate the need for welding, providing added durability.
This kit includes a precision-engineered actuator that combines quiet operation with a non-hydraulic design, ensuring maintenance-free performance. Corrosion-free and capable of very accurate tab positioning, it's built for maximum lift force and effortless installation. The actuator assembly is conveniently packaged with a non-metallic, permanently sealed housing, meaning no internal components are required on the boat.
Unlike traditional hydraulic trim tabs, there is no risk of oil leaks. The actuator comes equipped with either a standard or low-profile transom mounting bracket to fit various boat configurations.
*Control switch not included
The Lectrotab XKA 9" x 24" Stainless Steel Trim Tab Kit provides a robust solution for marine vessel trim management. This kit, identified by part number XKA9X24, is engineered for durability through its continuous rolled and pinned hinge design, which eliminates welding points. It is suitable for business and IT buyers managing fleets or marine operations requiring reliable, low-maintenance equipment. The system utilizes a non-hydraulic actuator for quiet operation and precise tab positioning, mitigating common issues associated with hydraulic systems like oil leaks. Its permanently sealed, non-metallic housing contains all internal components, simplifying installation by removing the need for additional on-board parts. The actuators are load-tested to 1000 lbs of force and feature a corrosion-free external structure, designed to withstand marine environments. This kit addresses the need for a strong, maintenance-efficient trim tab system capable of accurate performance.
The kit includes the 9" x 24" stainless steel trim tabs and a precision-engineered, non-hydraulic actuator assembly. It comes with either a standard or low-profile transom mounting bracket. A control switch is not included and must be acquired separately.
The non-hydraulic design offers maintenance-free performance and eliminates the risk of oil leaks commonly associated with traditional hydraulic systems. It also provides quiet operation and very accurate tab positioning.
The actuators are fully load tested and capable of pushing 1000 lbs of force. They feature an internal brake system to prevent unwanted tab movement and an internal pressure equalization system for balanced performance.
The trim tabs feature a unique continuous rolled and pinned hinge. This design enhances strength and reliability by eliminating the need for welding, which can be a point of failure in other designs.
XKA9X24 - Lectrotab XKA 9" x 24" Stainless Steel Trim Tab Kit
