Product Overview

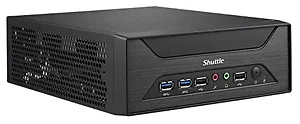

One of the biggest concern about the mini PC is that it usually with less room for expandability, but Shuttle?s newly XH270 has presented a new look of supporting up to four 2.5? Hard Drives in compact 3-liter size.
Technical Specifications
FORM FACTOR
Mini-ITX MB
3L chassis
PROCESSOR
Support Skylake-S/Kabylake-S 65W CPU
CHIPSET
Intel H270 Express Chipset
MEMORY
(2)DDR4 SO-DIMM 2133/2400MHz support, dual channel up to 32GB (16GB x2)
VIDEO OUTPUT
(1)HDMI+(1)DisplayPort+(1)VGA support triple independent display 4K playback
Integrated in CPU
AUDIO
Realtek ALC662 5.1 channel High Definition audio
ETHERNET
Intel I211 x210Mb/100Mb/1Gb/s operation
Support Wake-on-LAN function
Support Teaming feature
STORAGE INTERFACE
SATA 6.0Gb/s interface
ONBOARD CONNECTORS
(1) 4pin fan connector
(4) SATA connector w/power
(2) x5 pin USB2.0 header
(1) Front audio header
(1) Front USB2.0 header
(1) Front USB3.0 header
(1) Auto power on
(1) RS232 header
BACK PANEL
(2) RJ45 Gigabit LAN port
(1) DisplayPort
(1) HDMI
(1) VGA
(2) USB2.0 port
(2) USB3.0 port
(1) RS232
(1) Line-in port
(1) Line out port
(1) MIC-in port
(1) Clear CMOS button
(1) DC in
(1)Kensington lock
(2)Wireless Antenna fixture(optional)
DRIVE BAYS
Support 4x 2.5 HDD/SSD
POWER
120W Power Adapter
Input:100- 240V AC
Output: 19V 6.32A DC
ACCESSORIES
XPC Multilanguage Quick User Guide
XPC DVD Driver
Thermal Grease
120W adapter
2.5 HDD rack x4
Power cord
HDD Screw pack
EXPANSION SLOT
(1) M.2 2280 Type M (PCIe x4,SATA 6GB/s)
(1) M.2 2230 Type A,E (PCIe x1,USB2.0)
OS SUPPORT
Windows 7(SKL-S only)
Windows 10
Linux
Item Dimension (L inchxW inchxH inch)
15 x 6 x 11 Weight
6.55lb Warranty Information
3 Years
