SKU: U4ZDZVBMQQ |  Mfg. Part: XH110G  | UPC: 887993001265  |
 3 Reviews  |     Share Make an offer

XH110G - Shuttle Computers Shuttle System XH110G Core i7/i5/i3 H110 16GB DDR4 SATA HDMI+VGA Support Windows 10/Windows 7

Special Order
Ships in 1-2 weeks
Condition: New

$316.39  $427.13
Need 10+? Request a volume quote
 Free Shipping for this Item

Product Overview

Shuttle XH110G features performance and can be customized to drive highly interactive kiosk, vending machine, and POS applications. Equipped with Intel H110 chipset, this series supports Intel 6th and 7th generation LGA 1151 65W processors and delivers 4K/Ultra HD video content. With two video outputs, both can support dual screens independently. The series has PS/2, USB 2.0, USB 3.0, SATA 6Gbps, RS232, and Intel Dual Gigabit LAN to be found at the front and rear of the machine. With one built-in M.2 2280/2260/2242 Type M and one M.2 2230 Type A expansion slots, you can easily install an M.2 SSD, Wi-Fi module or other compatible devices providing strong expansion capability and network connectivity. Thanks to its heat pipe and smart fan cooling technology design, the series is 24/7 certified and runs reliably cool in 0-50?C temperatures.

Technical Specifications

FORM FACTOR
3L chassis
PROCESSOR
Support Intel Skylake/Kabylake Core i3/i5/i7, Pentium, Celeron CPU max. TDP 65W
CHIPSET
Intel H110 Express chipset
MEMORY
2 x DDR4 SO-DIMM slots,16GB per DIMM (Max 32GB) VIDEO OUTPUT
HDMI + VGA port dual display
AUDIO
Realtek ALC662 High Definition Audio
ETHERNET
Intel i211
10Mb/s,100Mb/s,1Gb/s operation
Support Wake-On-LAN function
STORAGE INTERFACE
SATA 6.0Gb/s interface
ONBOARD CONNECTORS
(1) SATA connector w/power
(1) 4 Pin fan connectors

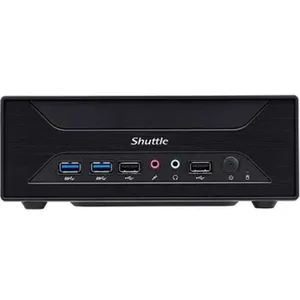

FRONT PANEL
(2) USB 2.0 ports
(2) USB 3.0 ports
(1) Microphone-In
(1) Earphone-Out
(1) Power-On button
(1) Power LED
(1) HDD LED
BACK PANEL
(1) RJ45 Gigabit LAN port
(1) HDMI
(4) USB 2.0 ports
(1) VGA
(2) Antenna Hole
(1) DC in
DRIVE BAYS
(1) 2.5" HDD / SSD bay
POWER
Input:100- 240V AC
ACCESSORIES
XPC Multilanguage Quick User Guide
XPC DVD Driver
1 Power cord
1180W adapter
1Screw pack
1VESA bracket
1VESA screw pack
" Optional " WLN-M , PS01
EXPANSION SLOT
(1) M.2 2280 Type M key socket
(1) M.2 2230 Type A,E Key socket
(1) PCI-E X16
Item Dimension (L inchxW inchxH inch)
15 x 6 x 11 Weight
6.55lb Warranty Information
3 years

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Shuttle Computers
  • XH110G
  • B0743GN4GT
  • 887993001265
  • New
  • 4.19 lbs
  • 10 X 3 X 8
  • May 16, 2026
  • Aug 16, 2017
Product Identifiers: Brand: Shuttle Computers • Part #: XH110G • UPC: 887993001265 • ASIN: B0743GN4GT • Category: PC Desktops
