Shuttle Computers XH110 Shuttle System XH110 XPC Slim LGA1151 H110 Maximum 16GB 3.5 Liter Retail
Out of Stock
Condition: New
$238.97$322.61
Free Shipping for this Item
Product Overview

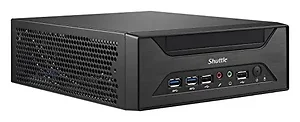

General InformationAffordable 3-litre PC for demanding tasksThe Shuttle XPC slim Barebone XH110 is a real roomster considering its small footprint - one optical drive, two 2.5" storage drives and an M.2 SSD card can be installed into the robust steel chassis. In addition, it supports the sixth generation of powerful Intel Core desktop processors. The built-in heatpipe cooling ensures the system runs quietly at maximum stability. Thanks to its great connectivity it meets the requirements of many applications that extends from office PC up to industrial applications. The system supports two displays with Ultra HD resolution, dual Gigabit LAN, four USB 3.0 and four USB 2.0 ports and two serial ports - WLAN and VGA port can be added optionally. With this high level of efficiency and flexibility - who needs a bulky tower PC anyway?Processor & ChipsetNumber of Processors Supported: 1Processor Socket: Socket H4 LGA-1151Processor Supported: Core i7Processor Supported: Core i3Processor Supported: Core i5Processor Supported: CeleronProcessor Supported: Pentium64-bit Processing: YesChipset Manufacturer: IntelChipset Model: H110MemoryMaximum Memory: 32 GBMemory Technology: DDR3L SDRAMMemory Standard: DDR3L-1600/PC3-12800Number of Total Memory Slots: 2ControllersController Type: Serial ATA/600Display & GraphicsGraphics Controller Manufacturer: IntelGraphics Controller Model: HD graphicsNetwork & CommunicationEthernet Technology: Gigabit EthernetI/O ExpansionsNumber of Total Expansion Bays: 3Number of External 5.25" Bays: 1Number of Internal 2.5" Bays: 2Number of Total Expansion Slots: 2Interfaces/PortsTotal Number of USB Ports: 8Number of USB 3.0 Ports: 4Number of SATA Interfaces: 3SoftwareOperating System Supported: LinuxOperating System Supported: Windows 7Operating System Supported: Windows 10Operating System Supported: Windows 8.1Power DescriptionInput Voltage: 120 V ACInput Voltage: 230 V ACMaximum Power Supply Wattage: 90 WPhysical CharacteristicsColor: BlackForm Factor: Slim PCHeight: 2.8"Width: 7.9"Depth: 9.4"Weight (Approximate): 4.85 lbMiscellaneousEnergy Star: Yes
Technical Specifications
FORM FACTOR Mini-ITX MB 3.5 L chassis PROCESSOR Support Intel Skylake Core i3/i5/i7, Pentium, Celeron CPU max. TDP 65W CHIPSET Intel H110 Express chipset MEMORY 2 x 204 pin DDR3L SODIMM slots,16GB per DIMM (Max 32GB) Dual Channel DDR3L 1600 Mhz VIDEO OUTPUT HDMI + Display port dual display AUDIO Realtek ALC662 5.1 channel High Definition Audio ETHERNET Intel i211+i219LM Dual Lan 100Mb/s and 1Gb/s operation Support Wake-On-LAN function Support Teaming function STORAGE INTERFACE SATA 6.0Gb/s interface ONBOARD CONNECTORS (3) SATA connectors (2) 1x5 pin USB 2.0 header (1) ATX main power connector (1) ATX 12V power connector (2) set 4pin fan connectors FRONT PANEL (2) USB 2.0 ports (2) USB 3.0 ports (1) Microphone-In (1) Earphone-Out Power-On button Power LED HDD LED BACK PANEL (2) RJ45 Gigabit LAN port (1) Display port (1) HDMI (2) USB 2.0 ports (2) USB 3.0 ports (1) RS232 (1) RS232/RS422/RS485 (1) Line in port (1) Line out port (1) MIC in port (1) Clear CMOS button (1) DC in (1) PS/2 port (1) Kensington lock (2) Wireless Antenna fixture DRIVE BAYS (1) 2.5" HDD / SSD bay (1) Slim ODD bay. User can install either 1 Slim ODD or (1) 2.5" HDD/SSD POWER Input:100- 240V AC Output: 19V/4.74A or 12V/7.5A DC 90W 19V Adapter bundled ACCESSORIES XPC Multilanguage Quick User Guide XPC DVD Driver 1 x Power cord 1 x SATA cable (pre-install for HDD) 1 x SATA cable (pre-install for ODD) 1 x 4 pin to SATA power cable Screws EXPANSION SLOT (1) M.2 2280 Type M key socket (1) M.2 2230 Type A,E Key socket OS SUPPORT Windows 7 Windows 8.1 Windows 10 Linux REMARK 1. PCH4 3.5" HDD rack accessory can support XH110/XH110V. Item Dimension (L"xW"xH") 15 x 6 x 11
