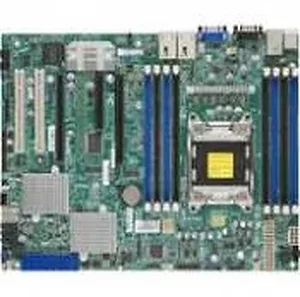

Supermicro X9SRH-7TF-B Intel C602 ATX Server Motherboard

Out of Stock
Condition: New

$637.20  $860.22
 Free Shipping for this Item

Product Overview

The Supermicro X9SRH-7TF-B is a robust and feature-rich ATX server motherboard designed to support Intel's state-of-the-art Xeon E5 family processors. It offers extensive system memory capacity, RAID support for both SATA and SAS, and superior networking capabilities, making it ideal for enterprise-level applications.

Technical Specifications

  • CPU: LGA2011, supports Intel Xeon E5-2600/E5-1600 processors with up to 8 cores and 135W TDP.
  • Chipset: Intel C602J.
  • Memory: 8x 240pin DDR3 DIMM slots, up to 256GB ECC/REG or 64GB ECC/Non-ECC un-buffered memory.
  • Expansion Slots: 2x PCI-Express 3.0 x16 (one at x8), 1x PCI-Express 2.0 x8 (at x4), and 2x PCI slots.
  • SATA Support: 2x SATA3, 4x SATA2 ports with RAID 0, 1, 5, and 10 support.
  • SAS Support: 8x SAS2 ports, supporting RAID 0, 1, and 10.
  • Video: Matrox G200eW Graphics Controller with 16MB DDR2 video memory.
  • Networking: Intel X540 Dual Port 10-Gigabit Ethernet Controller; includes 1x Realtek RTL8201N PHY for dedicated IPMI.
  • Connectivity: 9x USB 2.0 ports (2 rear, 6 via headers, 1 Type A), 1x VGA, 1x PS/2 Keyboard, 1x PS/2 Mouse, 2x Serial (1 rear, 1 via header), 2x RJ45 LAN, 1x RJ45 Dedicated IPMI LAN.
  • Form Factor: ATX, dimensions: 12.0 x 9.6 inch (30.5 x 24.4 cm).
  • Compliance: RoHS Compliant.

Product Details

  • Manufacturer:
  • Model Number:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Supermicro
  • X9SRH-7TF-B
  • New
  • 5 lbs
  • 0 X 0 X 0
  • Feb 19, 2026
  • Jan 09, 2013
Product Identifiers: Brand: Supermicro • Part #: X9SRH-7TF-B • Category: Server Boards
