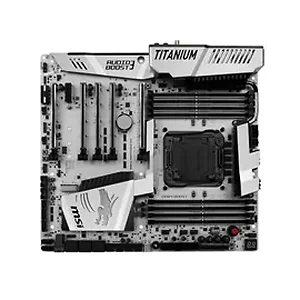

Msi X99A XPOWER GAMING T Motherboard X99A XPOWER GAMING TITANIUM Core i7 X99 DDR4 PCI Express SATA USB Extended ATX Reta

TITANIUM - Where Great Material Turns into Truly Unique Motherboard Design

Titanium alloys are used in the latest spacecraft technology and military equipment. Offering extreme strength, lightweight and the ability to withstand high temperatures it’s perfect to use on motherboards. TITANIUM motherboards’ extreme performance and their outstanding reliability is highlighted by its truly unique silver look and feel.

Unmatched Memory Performance and Stability

With traditional memory design the memory signals are often distorted by electromagnetic signals from other components, making the system perform slower or become unstable. MSI introduces DDR4 Boost technology with optimized traces and fully isolated memory circuitry. This design ensures the memory signals stay pure for optimal performance and stability.
Steel Armor technology is now also available for DDR4 Boost, offering better EMI-shielding and even better signal strength, for optimal memory performance.

DEDICATED GAMING LAN WITH INTEL®

Experience a more fluid game with Intel® i218 LAN. Intel® i218 LAN is designed to deliver high performance when gaming, delivering more throughput than other solutions.
Intel® i218 LAN is optimized for championship level online and LAN eSports by reducing CPU overhead and offering exceptionally high TCP and UDP throughput. This way, your CPU can be used more effectively and you can enjoy more FPS when gaming.

CPU
Supports New Intel Core^TM i7 Processor Extreme Edition for LGA2011-3 Socket
Supports Intel Turbo Boost Max Technology 3.0 (This function will be supported depend on the CPU.)

Chipset
Intel X99 Chipset

Main Memory
8 x DDR4 memory slots, support up to 128GB
- Supports DDR4 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3000(OC)/ 2933(OC)/ 2800(OC)/ 2666(OC)/ 2600(OC)/ 2400/ 2200(OC)/ 2133 MHz
Quad channel memory architecture
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
Supports RDIMM 1Rx8 memory module (Operates in non- ECC mode)

Slots
5 x PCIe 3.0 x16 slots (PCI_E1 to PCI_E4 PCI_E6), support up to 4-way mode.
- 1-way mode: x16/x0/x0/x0/x0
- 2-way mode: x16/x0/x0/x16/x0, x16/x0/x0/x8/x0
- 3-way mode: x16/x0/x0/x16/x8 x8/x8/x0/x8/x0
- 4-way mode: x8/x8/x0/x16/x8, x8/x8/x0/x8/x4
1x PCIe 2.0 x1 slot (PCI_E5)

Multi-GPU
Supports 4-Way AMD CrossFire^TM Technology
Supports 4-Way NVIDIA SLI^TM Technology

Storage
Intel X99 Chipset
10 x SATA 6Gb/s ports (2 ports from SATAe port)
1 x M.2 slot (Key M)
- Supports up to PCIe 3.0 x4 and SATA 6Gb/s
- Supports 2242/ 2260 /2280/ 22110 storage devices
1 x U.2 port
- Supports PCIe 3.0 x4 NVMe storage
1 x SATAe port (compatible with 2 SATA ports)
- Supports up to PCIe 2.0x2
Supports Intel Smart Response Technology

RAID
Intel X99 Chipset
SATA1 to 6 ports support RAID 0, RAID1, RAID 5 and RAID 10
SATA7 to 10 ports only support IDE mode and AHCI mode.

USB
ASMedia ASM1142 Chipset
- 2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port and 1 Type-C port on the board)
- 2 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal JUSB4 connector.
VIA VL805 Chipset
- 4 x USB 3.1 Gen1 (SuperSpeed USB) ports on the back panel
Intel X99 Chipset
- 5 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 1 internal Type-C port on the board, 2 ports available through the internal JUSB3 connector)
- 7 x USB 2.0 (High-speed USB) ports (3 ports on the back panel, 4 ports available through the internal USB connectors)

Audio
Realtek ALC1150 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output

WLAN and Bluetooth
Wi-Fi/ Bluetooth expansion module with Intel Dual Band Wireless-AC 8260 chip
- Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 867 Mbps speed.
- Supports Dual Mode Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, BLE, 4.2

LAN
1 x Intel I218-V Gigabit LAN controller

Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x 4-pin ATX 12V power connector
- 1 x flat 4-pin ATX 12V power connector
- 10 x SATA 6Gb/s connectors
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
- 1 x USB 3.1 Gen1 Type-C port
- 1 x 4-pin CPU fan connector
- 1 x 4-pin Water Pump connector
- 2 x 4-pin OPT fan connectors
- 3 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 1 x RGB LED connector
- 1 x TPM module connector
- 1 x OC retry button
- 1 x OC force enter BIOS button
- 2 x Front panel connectors
- 1 x Chassis Intrusion connector
(Provides additional power to PCIe x16 slots)

Back Panel I/O Ports
- 1 x PS/2 keyboard/ mouse combo port
- 3 x USB 2.0 ports
- 1 x BIOS FLASHBACK+ port
- 1 x Clear CMOS button
- 1 x USB 3.1 Gen2 port
- 1 x USB 3.1 Gen2 Type-C port
- 6 x USB 3.1 Gen1 ports
- 1 x LAN (RJ45) port
- 1 x Optical S/PDIF OUT connector
- 5 x OFC audio jacks

Form Factor
ATX

Item Dimension (L inchxW inchxH inch)
15 x 12 x 5

Weight
8.00lb

Warranty Information
3 YEARS
