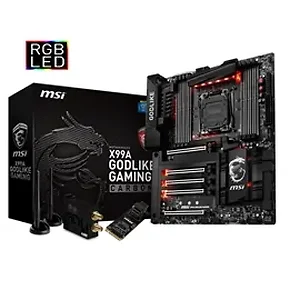

Msi X99A GODLIKE GAMINGC Motherboard X99A GODlike Gaming Carbon Haswell-E i7 S2011 DDR4 PCI Express SATA USB Extended AT

•  Supports New Intel® Core™ i7 processors Extreme Edition in LGA 2011-3 socket
•  Supports Quad Channel DDR4-3400+(OC) Memory
•  Mystic Light: Style your favorite color from now on
•  2X Faster USB 3.1: Delivering speeds up to 10Gb/s, USB 3.1 offers performance twice as fast as a regular USB 3.0 connection.
•  DoubleShot-X3 PRO: Use Killer DoubleShot-X3 Pro to combine Killer WIFI with two Killer LANs for the best online gaming experience
•  Turbo U.2 SSD Solution: Take advantage from the whole new storage solution up to 2.4GB/s read speed
•  Turbo M.2 : Delivering next generation M.2 Gen3 x4 performance with transfer speeds up to 32 Gb/s
•  SATA Express + USB 3.1 + SATA 6Gb/s
•  Multi-GPU: 4-Way NVIDIA SLI & AMD CrossFire Support
•  OC Engine: Reach higher overclocking results with more flexible BCLK adjustments at 100/125/167MHz.
•  Audio Boost 3 PRO: Hear the sound from the heaven with 6.3mm audio jack and ESS audio DAC
•  USB Audio Power: Serve Stable 5V Power & Better Signal Transmission over USB
•  XSplit Gamecaster: Show off you skills to the world with a 1 year premium license for this popular streaming software
•  Guard-Pro: Improved Protection and Power Efficiency
•  OC Genie 4: Overclock in 1 Second
•  Gaming App: Boost your framerate
•  Click BIOS 4: Easily Fine-tune Your System
•  Nahimic Audio Enhacer: Enjoy sound that pushes the limits of reality.
•  Gaming Device Port: Optimized with Triple Gold-plating for High Polling Rate Gaming Devices

CPU
Supports New Intel Core^TM i7 Processors Extreme Edition for LGA 2011-3 Socket

Chipset
Intel X99 Express Chipset

Main Memory
Support eight DDR4 DIMMs 2133/2200(OC)/2400(OC)/2600(OC)/2666(OC)/2750(OC)/2800(OC)/3000(OC)/3110(OC)/3333(OC)/3400(OC)DRAM (128GB Max)
- Supports Quad-Channel mode
- Supports non-ECC, un-buffered memory
- Supports Intel Extreme Memory Profile (XMP)
- Supports RDIMM 1Rx8 memory module(Operates in non-ECC mode)

Slots
5 x PCIe 3.0 x16 slots (PCI_E1 to E4, PCI_E6), support up to 4-way mode
- 1-way mode: x16/ x0/ x0/ x0/ x0
- 2-way mode: x16/ x0/ x0/ x16/ x0 (For the CPU that supports 40 PCIe lanes), x16/ x0/ x0/ x8/ x0 (For the CPU that supports 28 PCIe lanes)
- 3-way mode: x16/ x0/ x0/ x16/ x8 (For the CPU that supports 40 PCIe lanes), x8/ x8/ x0/ x8/ x0 (For the CPU that supports 28 PCIe lanes)
- 4-way mode: x8/ x8/ x0/ x16/ x8 (For the CPU that supports 40 PCIe lanes), x8/ x8/ x0/ x8/ x4 (For the CPU that supports 28 PCIe lanes)

Multi-GPU Support
Supports 4-Way AMD CrossFire^TM Technology (Supports Windows 7 and Windows 8/ 8.1)
Supports 4-Way NVIDIA SLI^TM Technology (For the CPU that supports 40 PCIe lanes)
Supports 3-Way NVIDIA SLI^TM Technology (For the CPU that supports 28 PCIe lanes)
(Supports Windows 7 and Windows 8/ 8.1)

Storage
Intel X99 Express Chipset
10x SATA 6Gb/s ports (2 x ports compatible with 1 x SATA Express port) (The SATA Express port or SATA5 to 6 ports will be unavailable when installing the M.2 (Gen2 x2 mode) module in the M.2 port.)
- SATA1 to 6 support RAID 0, RAID 1, RAID 5 and RAID 10
- SATA7 to 10 ports only support IDE mode and AHCI mode
- Supports Intel Smart Response Technology (Windows 7/ 8/ 8.1)
1 x SATA Express port(The SATA Express port or SATA5 to 6 ports will be unavailable when installing the M.2 (Gen2 x2 mode) module in the M.2 port.)
1 x M.2 port, supports M.2 SATA 6Gb/s module(The SATA Express port or SATA5 to 6 ports will be unavailable when installing the M.2 (Gen2 x2 mode) module in the M.2 port.) or M.2 PCIe module up to 32Gb/s speed (Intel RST does not support PCIe M.2 SSD with Legacy ROM)
- M.2 port supports 4.2cm/ 6cm/ 8cm length module
- M.2 PCIe module does not support RAID 0, RAID1, RAID 5 and RAID 10

USB
Intel X99 Express Chipset :
2x USB 3.1 Gen1 ports through the internal USB connector
4x USB 3.1 Gen1 ports on the back panel
ASMedia ASM1142 Chipset : 2x USB 3.1 Gen2 ports(1 Type-A/1-Type-C) on the back panel
ASMedia ASM1042AE Chipset : 2x USB 3.1 Gen1 ports through the internal USB connector

Audio
Realtek ALC1150 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output

LAN
2 x Killer E2400 Gigabit LAN controller

WIreless LAN
Killer Wireless 1535 module.
Supports 2x2 802. 11a/b/g/n/ac with advanced features
Supports 20/40 MHz at 2.4 GHz and 20/40/80 MHz at 5GHz
(BLE: Bluetooth Low Energy)

Internal I/O Connectors
- 1 x 24-pin AT x main power connector
- 1 x 8-pin AT x 12V power connector
- 1 x 4-pin AT x 12V power connector
- 10 x SATA 6Gb/s connectors
- 1 x M.2 connector
- 1 x SATA Express connector
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 2 x USB 3.1 connectors (supports additional 4 USB 3.1 Gen1 ports)
- 2 x 4-pin CPU fan connectors
- 3 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 2 x System panel connectors
- 1 x TPM module connector
- 1 x Chassis Intrusion connector
- 9 x V-Check connectors
- 1 x Clear CMOS jumper
- 1 x Power button
- 1 x Reset button
- 1 x OC Genie button
- 1 x Multi-BIOS switch
- 1 x OC Genie mode switch
- 1 x Audio selection switch
- 1 x Slow mode switch
- 1 x 2-Digit Debug Code LED
- 1 x Wi-Fi/Bluetooth module connector

Back Panel I/O Ports
- 1 x PS/2 port
- 2 x USB 2.0 ports
- 1 x Clear CMOS button
- 1 x USB 3.1 Gen2 port
- 1 x USB 3.1 Gen2 Type-C port
- 4 x USB 3.1 Gen1 ports
- 2 x LAN (RJ45) ports
- 1 x 6.3mm Gold-plated stereo headphone jack
- 1 x Optical S/PDIF OUT connector
- 5 x OFC audio jacksv

BIOS
The motherboard BIOS provides "Plug and Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.

Form Factor
E-ATX

Mounting
9 mounting holes

Item Dimension (L inchxW inchxH inch)
15 x 12 x 5

Weight
9.00 lb

Warranty Information
3 years
