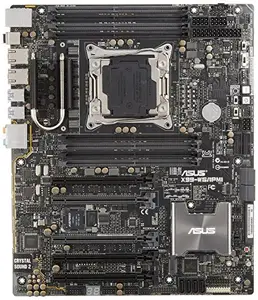

Technical Specifications
CPU
Build in Intel Socket 2011-v3 Core i7 Processors
Supports Intel 22 nm CPU
Supports Intel Turbo Boost Technology 2.0
Intel Socket 2011-v3 for Intel Xeon processor E5-1600 v3 product family
Intel Socket 2011-v3 for Intel Xeon processor E5-2600 v3 product family Chipset
Intel X99 Memory
8 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
8 x DIMM, Max. 128GB, DDR4 2133/1866 MHz ECC, Un-buffered Memory
8 x DIMM, Max. 128GB, DDR4 2133/1866 MHz ECC, Register Memory
Quad Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP) Multi-GPU Support
Supports NVIDIA 3-Way SLI Technology
Supports AMD Quad-GPU CrossFireX Technology Expansion Slots
40-Lane CPU- 5 x PCIe 3.0/2.0 x16 (single at x16, dual at x16/x16, triple at x16/x16/x8, quintuple at x8/x8/x8/x8/x8 mode)
28-Lane CPU-5 x PCIe 3.0/2.0 x16 (single at x16, dual at x16/x8, quad at x8/x8/x8/x4 mode) Storage
Intel X99 Chipset:
- 8 x SATA 6Gb/s port(s)
- 1 x SATA Express port, gray, compatible with 2 x SATA 6.0 Gb/s ports
- 1 x M.2 Socket 3, gray
- Support Raid 0, 1, 5, 10
- Supports Intel Smart Connect Technology LAN
Intel I210-AT, 2 x Gigabit LAN Controller(s)
1 x Management LAN Audio
Realtek ALC1150 8-Channel High Definition Audio CODEC featuring Crystal Sound 2
Supports : Jack-detection, Multi-streaming, Front Panel Jack-re-tasking, Front Panel MIC Jack-re-tasking
- High quality 109 dB SNR stereo playback output (Line-out at rear) and 104 dB SNR stereo playback input (Line-in)
High-fidelity audio OP AMP(s)
Audio Feature:
- DTS Ultra PC II
- DTS Connect
- Optical S/PDIF out port(s) at back panel
- BD Audio Layer Content Protection
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Audio amplifier: Provides the highest-quality sound for headphone and speakers
Premium Japanese-made 12K hours capacitors
- Absolute Pitch 192khz/24bit true BD lossless sound
Separate layer for left and right track, ensuring both sound deliver equal quality USB Ports
Intel X99 Chipset: 6 x USB 3.0/2.0 port(s) (2 at back panel, 4 at mid-board)
Intel X99 Chipset: 6 x USB 2.0/1.1 port(s) (2 at back panel, 4 at mid-board)
ASMedia USB 3.0 Controller:
2 x USB 3.0/2.0 port(s) (2 at back panel, +blue) Workstation Features
5 x PCIe x 16 slot(s)
ASUS Dr. Power
12K hours Capacitors
ProCool Power Connector
Q-Code Logger Special Features
ASUS TPU:
- TPU switch
ASUS EPU:
- EPU
- EPU switch
ASUS Digital Power Design:
- Industry leading Digital 8 Phase Power Design
- Industry leading Digital 4 Phase DRAM Power Design
- CPU Power Utility
- DRAM Power Utility
ASUS Exclusive Features:
- USB BIOS Flashback
- MemOK
- Ai Charger+
- USB Charger+
- M.2 SATA Express
- Disk Unlocker
- Turbo LAN
- Crystal Sound 2
- EZ XMP ASUS Exclusive Features
ASUS EZ DIY:
- ASUS O.C. Tuner
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- Push Notice
ASUS Q-Design:
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
Media Streamer Operating System Support
Windows 8.1
Windows 8
Windows 7
Windows Server 2012 R2 Back I/O Ports
2 x LAN (RJ45) port(s)
4 x USB 3.0 (blue)
2 x USB 2.0 (one port can be switched to USB BIOS Flashback)
1 x Optical S/PDIF out
8 x Audio jack(s)
1 x USB BIOS Flashback Button(s)
1 x Q-Code Logger button
1 x 8-channel Audio I/O
1 x Management LAN Internal I/O Ports
1 x AAFP connector
2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x SATA Express connector: gray, compatible with 2 x SATA 6.0 Gb/s ports
1 x M.2 Socket 3 for M Key, type 2260/2280 devices
1 x TPM connector(s)
1 x TPM header
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
4 x Chassis Fan connector(s) (4 x -pin)
1 x S/PDIF out header(s)
2 x 8-pin EATX 12 V Power connector
1 x 6-pin EATX 12 V_1 Power connector(s)
1 x 24-pin EATX Power connector(s)
1 x EZ XMP switch
1 x AUX panel header(s)
1 x SMBus header(s)
1 x System panel(s)
1 x DRCT header(s)
1 x MemOK button(s)
1 x TPU switch(es)
1 x EPU switch(es)
1 x Power-on button(s)
1 x Reset button(s)
1 x Clear CMOS button(s)
1 x Dr. Power switch(es)
1 x 3-pin CHASSIS(Chassis intrusion) connector Accessories
Users manual
ASUS Q-Shield
1 x COM port cable(s)
10 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x 3-Way SLI bridge(s)
1 x SLI bridge(s)
1 x 2-port USB 2.0 module(s)
1 x VGA bracket(s)
1 x ASWM Enterprise SDVD
1 x ASMB8 Support DVD BIOs
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 2, CrashFree BIOS 3, F11 EZ Tuning Wizard , F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information. Manageability
WfM 2.0, DMI 2.7, WOL by PME, PXE Support Disc
DriversASUS UtilitiesEZ Update Anti-virus software (OEM version) Form Factor
ATX Form Factor
12 inch x 10 inch ( 30.5 cm x 25.4 cm ) Environment
Operation Temperature: 10 C to 35 C
Non Operation Temperature: -40 C to 70 C
Non Operation Humidity: 20% to 90% (Non Condensing)
