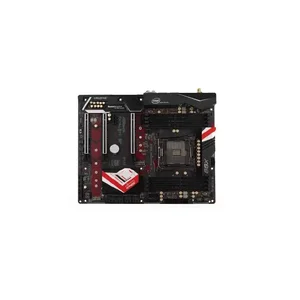

X99 PROFESSIONAL GAMING I7 - Asrock X99 Professional Gaming Motherboard

Specifications

• CPU: LGA 2011-v3
  • Supports Intel CoreTM i7 and Xeon 18-Core Processors
  • Digi Power Design
  • 12 Power Phase Design
  • Supports Intel Turbo Boost 3.0 Technology
  • Supports Untied Overclocking Technology
• Chipset: Intel X99
• Memory: 8x DDR4-3300+(OC) / 2933(OC) / 2800(OC) / 2400(OC) / 2133, Quad-Channel, Non-ECC, Unbuffered, Max Capacity up to 128GB
• Slots: 3x PCI-Express 3.0 x16 Slots; 2x PCI Express 2.0 x1 Slots; 1x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT module
• Multi-Graphics: Supports AMD Quad CrossFireX, 3-Way CrossFireX, CrossFireX and NVIDIA Quad SLI, 3-Way SLI, SLI Technology
• Storage:
  • SATA: 10x SATA3 Ports, Support RAID 0, 1, 5, 10; 1x SATA Express 10 Gb/s Connector
  • M.2: 2x Ultra M.2 Socket
• Audio: Realtek ALC1150 7.1-Channel High Definition Audio CODEC; Supports Premium Blu-ray Audio
• LAN: Intel I218V & I211AT Gigabit Ethernet Controllers; IEEE 802.11a/b/g/n/ac Wireless LAN (2.4/5GHz); Bluetooth 4.0 / 3.0 + High speed class II
• Ports: 2x USB 3.1 Ports (1 rear Type-A, 1 rear Type-A), 8x USB 3.0 Ports (4 rear, 4 via headers), 6x USB 2.0 Ports (2 rear, 4 via headers), 1x PS/2 Keyboard/Mouse Port, 1x Optical S/PDIF Out, 2x RJ45 LAN Ports, Audio I/O Jacks
• Power Connector: 1x 24pin ATX Power Connector, 1x 8pin 12V Power Connector
• Form Factor: ATX, 12.0 x 9.6 inch / 30.5 x 24.4 cm
