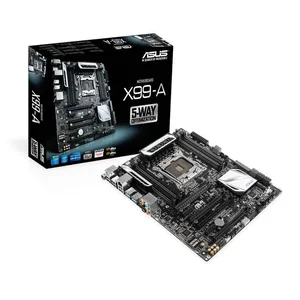

Asus X99-A ATX Motherboard for Intel Core i7 Processors

Specifications

• CPU: LGA 2011-v3
  • Supports Intel Core i7 Processors
  • Supports Intel 22nm CPU
  • Supports Intel Turbo Boost Technology 2.0
• Chipset: Intel X99
• Memory: 8x DDR4-3200(OC)/3000(OC)/2800(OC)/2666(OC)/2400(OC)/2133 DIMM Slots, Quad Channel, Non-ECC, Unbuffered, Max Capacity of 64GB
• Slots:
  • 40-Lane CPU: 3x PCI-Express 3.0/2.0 x16 Slots (run at x16, x16/x16, x16/x16/x8)
  • 28-Lane CPU: 3x PCI-Express 3.0/2.0 x16 Slots (run at x16, x16/x8, x16/x8/x4), 1x PCI-Express 2.0 x16 Slot (runs at x4), 2x PCI-Express 2.0 x1 Slots
• Multi-Graphics: Supports AMD Quad-GPU CrossFireX, 3-Way CrossFireX and NVIDIA Quad-GPU SLI, 3-Way SLI Technology
• Storage:
  • SATA: 8x SATA3 Ports, Support RAID 0, 1, 5, 10, 1x SATA Express Port
  • M.2: 1x M.2 Port (type 2242/2260/2280/22110), Support PCI-Express SSD only
• Audio: Realtek ALC1150 8-Channel High Definition Audio CODEC
• LAN: Intel I218V Gigabit Ethernet Controller
• Ports: 10x USB 3.0/2.0 Ports (6 rear, 4 at mid-board), 8x USB 2.0/1.1 Ports (4 rear, 4 at mid-board), 1x PS/2 Keyboard/Mouse Combo Port, 1x Optical S/PDIF Out, 1x RJ45 LAN Port, Audio I/O Jacks
• Power Connector: 1x 24pin EATX Power Connector, 1x 8pin ATX 12V Power Connector
• Form Factor: ATX, 12.0 x 9.6 inch / 30.5 x 24.4 cm
