SKU: AZTEKHF9VN |  Mfg. Part: X8DAH+-B OPEN BOX  |
 1 Reviews  |     Share Make an offer

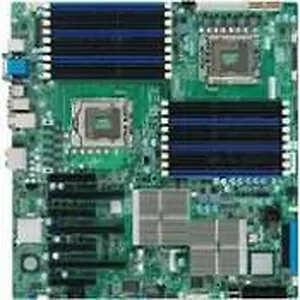

Supermicro X8DAH+-B OPEN BOX X8DAH B Dual LGA1366 Server Motherboard - Open Box

Out of Stock
Condition: New

$555.45  $749.86
 Free Shipping for this Item

Product Overview

The Supermicro X8DAH B is a high-performance server motherboard designed for dual Intel LGA1366 processors. It supports the Intel 5600 and 5500 series processors, making it ideal for demanding server applications. With ample memory capacity and multiple expansion slots, this motherboard is well-suited for enterprise-level tasks.

Technical Specifications

  • CPU: Supports up to two Intel 64-bit Xeon 5600 Series (Westmere) / 5500 Series (Nehalem-EP) processors with QPI up to 6.4 GT/s.
  • Chipset: North Bridge Intel 5520 (Tylersburg) & South Bridge ICH10R + 2x IOH-36D.
  • Memory: 18x 240pin DDR3-1333/1066/800 DIMM slots; Supports up to 288GB ECC/REG or 48GB ECC/Non ECC Unbuffered memory.
  • Expansion Slots: 3x PCI-Express 2.0 x16 slots (one runs at x8), 3x PCI-Express 2.0 x8 slots, 1x PCI-Express 2.0 x4 slot.
  • SATA: 6x SATA2 ports; Supports RAID 0, 1, 5, 10 (Windows), and RAID 0, 1, 10 (Linux).
  • IDE: Single EIDE channel supports up to two UDMA IDE devices, including CF (Compact Flash) Card; Supports UDMA Mode 5, PIO Mode 4, and ATA/100.
  • Audio: Realtek ALC888 7.1-Channel High Definition Audio CODEC.
  • LAN: Intel 82576 Dual Port Gigabit Ethernet Controller.
  • Ports: 10x USB 2.0 ports (6 rear, 3 via headers, 1 on board), 1x PS/2 Keyboard port, 1x PS/2 Mouse port, 1x Serial port, 2x IEEE 1394a ports (1 rear, 1 via header), 2x RJ45 LAN ports, Audio I/O jacks.
  • Form Factor: Enhanced Extended ATX, dimensions 13.68 x 13.00 inch / 34.7 x 33.0 cm.
  • RoHS Compliant

Product Details

  • Manufacturer:
  • Model Number:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Supermicro
  • X8DAH+-B OPEN BOX
  • New
  • 5 lbs
  • 0 X 0 X 0
  • Feb 19, 2026
  • Jan 09, 2013
Product Identifiers: Brand: Supermicro • Part #: X8DAH+-B OPEN BOX • Category: Server Boards
