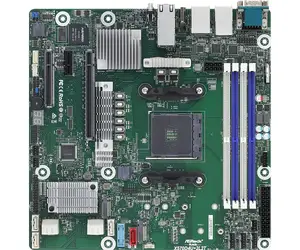

X570D4U-2L2T - Asrock RACK X570D4U-2L2T MICRO-ATX SERVER MOTHERBOARD AMD AM4 PGA 1331 DUAL 10GL

Special Order
Ships in 1-2 weeks
Condition: New

$519.49  $701.31
Need 10+? Request a volume quote
 Free Shipping for this Item

Product Overview

ASROCK RACK X570D4U-2L2T MICRO-ATX SERVER MOTHERBOARD AMD AM4 PGA 1331 DUAL 10GL

Expert Overview

The ASRock Rack X570D4U-2L2T is a micro-ATX server motherboard designed for business and IT environments requiring a compact yet capable platform. It supports 3rd Gen AMD Ryzen Processors and 2nd Gen AMD Ryzen Processors with Radeon Graphics, utilizing the AM4 PGA 1331 socket and AMD X570 chipset. This board is suitable for building small-scale servers, workstations, or specialized computing appliances where space is a consideration but performance and connectivity are still critical. It addresses the need for robust data handling and network throughput with its dual 10GbE and dual 1GbE LAN ports, alongside extensive storage options including 12 SATA 6Gb/s connectors and two M.2 slots. The integrated ASPEED AST2500 BMC controller provides out-of-band management capabilities via IPMI 2.0, simplifying remote administration and system monitoring for IT professionals. The X570D4U-2L2T offers a balanced solution for applications requiring a modern AMD platform with server-grade features.

Technical Specifications

MB Physical Status
Form Factor
micro-ATX
Processor System
CPU
supports 3rd Gen AMD RyzenTM Processors and 2nd Gen AMD RyzenTM Processors with RadeonTM Graphics
Socket
AM4 PGA 1331
Power Design
105W
Chipset
AMD X570
System Memory
Capacity
4 DIMM slots (2DPC)
Type
288-pin DDR4 ECC and non-ECC UDIMM
ECC support varies by CPU
DIMM Size Per DIMM
up to 32GB per DIMM
DIMM Frequency
3rd Gen AMD RyzenTM Processors : up to 3200 MHz
2nd Gen AMD RyzenTM Processors with RadeonTM Graphics: up to 2666 MHz
Voltage
1.2V
Expansion Slot
PCIe 4.0 x 16
SLOT6: Latch PCIe x16 (PCIe 4.0 x16) (CPU), auto switch to PCIe4.0 x8 when SLOT4 is occupied
Supports PCIe3.0 x8 when using 2nd Gen AMD RyzenTM Processors with RadeonTM Graphics
PCIe 4.0 x 8
SLOT4: Open-end PCIe x8 (PCIe 4.0 x8) (CPU)
Disabled when using 2nd Gen AMD RyzenTM Processors with RadeonTM Graphics
M.2
1 M-key (PCIe4.0 x4 or SATA 6Gb/s), Form factor: 22110/2280/2260/2242 (CPU)
1 M-key (PCIe4.0 x4 or SATA 6Gb/s), Form factor: 2280/2260/2242 (X570)
Supports PCIe3.0 when using 2nd Gen AMD RyzenTM Processors with RadeonTM Graphics
Storage
SATA Controller
X570 (12 SATA 6Gb/s, support RAID 0/1/10):
8 SATA 7-pin connectors, including 1 support SATA DOM
4 SATA via optional M2-HD M.2 device
Ethernet
Additional GbE Controller
2 RJ45 (10GbE) by Intel X550-AT2
2 RJ45 (1GbE) by Intel i210
Management
BMC Controller
ASPEED AST2500 : IPMI (Intelligent Platform Management Interface) 2.0
IPMI Dedicated GLAN
1 x Realtek RTL8211E for dedicated management GLAN
Graphics
Controller
ASPEED AST2500:
1 DB15, 1 (15-pin) header
2nd Gen AMD RyzenTM Processors with RadeonTM Graphics:
1 HDMI
Rear Panel I/O
HDMI
1
VGA Port
1
USB 3.1 Gen2 Port
2
Lan Port
2 RJ45(1GbE), 2 RJ45 (10GbE)
Dedicate LAN
1
Serial Port
1
UID Button/UID LED
1
Internal Connector
Front Lan LED Connector
1 for LAN3/LAN4
Auxiliary Panel Header
1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
TR1 Header
1
TPM Header
1 (17-pin, LPC), 1 (13-pin, SPI)
IPMB Header
1
VGA Header
1
PMBus CONN
1
Buzzer
1
Fan Header
3 (6-pin), 3 (4-pin)
Front Panel
1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
Speaker Header
1
BMC_SMB Header
1
Power Connector
1 ATX main power (24-pin), 1 ATX 12V (8-pin)
Clear CMOS
1 contact pads
Onboard LED
Standby PWR LED 5vsb
1
80 Debug Port LED
1
Fan Fail LED
6
System BIOS
BIOS Type
32MB AMI UEFI Legal BIOS
BIOS Features
Plug and Play (PnP), ACPI 2.0 Compliance Wake Up Events, SMBIOS 2.8.0 Support, ASRock Rack Instant Flash
Hardware Monitor
Temperature
CPU/ DRAM/ MB/ Card Side/ 10G LAN/X570 temperature sensing
Fan
Fan Tachometer
Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control
Voltage
3VSB, 5VSB, VCPU, VSOC, VCCM, APU VDDP, PM VDD CLDO, PM VDDCR S5, PM VDDCR, BAT, 3V, 5V, 12V
Environment
Temperature
Operation temperature: 10oC - 35oC / Non operation temperature: -40oC - 70oC
Item Dimension (L"x W"x H")
12 x 12 x 3
Weight
4.00 LB
Warranty Information
3 years

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Country of Origin:
  • ASRock
  • X570D4U-2L2T
  • B08XBB212S
  • 4710483932427
  • New
  • 2.5 lbs
  • 11 X 2 X 11
  • Aug 24, 2026
  • Jul 29, 2020
  • CN
Product Identifiers: Brand: Asrock • Part #: X570D4U-2L2T • UPC: 4710483932427 • ASIN: B08XBB212S • Category: Computer Servers

Frequently Asked Questions

What types of CPUs are compatible with this motherboard?

This motherboard supports 3rd Gen AMD Ryzen Processors and 2nd Gen AMD Ryzen Processors with Radeon Graphics, utilizing the AM4 PGA 1331 socket.

What memory types are supported?

The board supports 288-pin DDR4 ECC and non-ECC UDIMM memory modules. ECC support is dependent on the specific CPU installed.

What network connectivity options are available?

The motherboard features dual 10GbE RJ45 ports via an Intel X550-AT2 controller and dual 1GbE RJ45 ports via an Intel i210 controller, in addition to a dedicated management GLAN port.

Does this motherboard include remote management capabilities?

Yes, it includes an ASPEED AST2500 BMC controller, which provides IPMI 2.0 for out-of-band management via a dedicated GLAN port.
