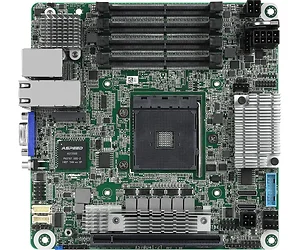

Technical Specifications
MB Physical Status
Form Factor
- mini-ITX
Processor System
CPU
- AMD RyzenTM 3rd Generation Series Processors(Max 105W)
Socket
- AM4 PGA 1331
Chipset
- AMD Premium X570
System Memory
Capacity
- 4 x DDR4 SO DIMM slots Type
- Dual Channel DDR4 memory technology, Support DDR4 ECC and non-ECC SO DIMM
- Supports DDR4 ECC/UDIMM,up to 2933MHz
One DIMM:
1R DIMM at 2933MT/s, 2R/2DR DIMM at 2400T/s
Two DIMMs:
(2) 1R DIMM at 2400 MT/s, (2) 2R/2DR DIMM at 2400MT/s, Max per DIMM size is: 32 GB
Conditionally support ECC error reporting function
Voltage
- 1.2V
Expansion Slot
PCIe 4.0 x 16
-PCIE7: Gen4x16 link (Matisse)
When use Picasso CPU, only PCIe3.0 x8
Storage
SATA Controller
- AMD X570:8 x SATA3 by OCulink M.2 slot
-1 (2280, supports PCIe 4.0 x4/SATA3 6.0Gb/s)
When use Picasso CPU, only PCIe3.0 x4
Ethernet
Interface
- 10000/1000 /100 /10 Mbps LAN Controller
- 2 x RJ45 10GLAN by Intel X550-AT2
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE
Management
BMC Controller
- ASPEED AST2500 IPMI Dedicated GLAN
- 1 x Realtek RTL8211E for dedicated management GLAN
Features
- Watch Dog
Graphics
Controller
- ASPEED AST2500
VRAM
- DDR4 16MB
Rear Panel I/O
VGA Port
- 1 x D-Sub USB 3.1 Gen2 Port
- 2(Gen2) Lan Port
- RJ45:2+1(IPMI)
- LAN Ports with LED (ACT/LINK LED and SPEED LED) UID Button/UID LED
- 1
Internal Connector
COM Header
- 1
SATA DOM
- 0 M.2
- 1(M-key,only 2280, Support PCIe 4.0 x4 or SATA3 6.0Gb/s)
When use Picasso CPU, only PCIe3.0 x4 OCuLink
-2(4xSATA3 6.0Gb/s/PCIe 4.0x4 for each)
When use Picasso CPU, only PCIe3.0 x4
