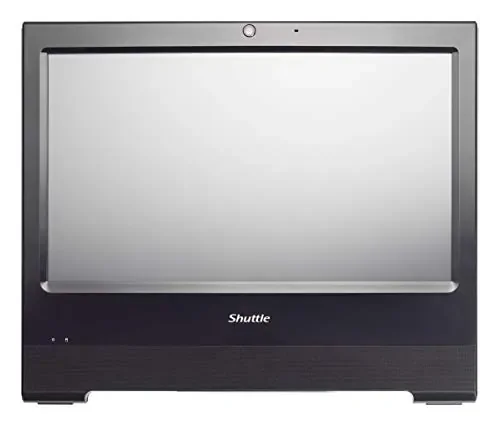

X50V7 BLACK - Shuttle Computers Shuttle System X50V7 BLACK XPC AIO Celeron 4205U No RAM No HDD/SSD No OS IP54 Retail

Upgraded 15.6 AIO Featuring 8th Gen. Intel Processors

The X50V7 is the latest addition to the AIO X50 series powered by the 8th Gen Intel Celeron processor. The new Whisky Lake architecture helps deliver outstanding performance while increasing energy efficiency. Passive cooling and the IP54 front panel make the system virtually noise-free, maintenance-free, and ensure a highly stable 24/7 operation. Besides, with flexible expansion options, users can easily upgrade their device with COM, LPT, and DIO ports. Available in black and white to suit a variety of POS, POI, and Kiosk applications.

8th Gen. Intel Celeron Processor

The X50V7 is powered by the Intel 8th Gen Celeron 4205U processor. New Whiskey Lake architecture helps provide outstanding performance while achieving better energy efficiency.

*Core i3 processor is also available.

Simply Touch

The 16:9 15.6 single touch screen does not require a mouse and keyboard, making it suitable for interactive kiosk and point-of-sale applications.

IP54 Protection

The front panel features IP54 design for both water and dust resistance, conforming to environmental specifications for industrial and commercial applications.

Triple Display Productivity

The X50V7 supports the connection of two external displays via built-in HDMI and VGA outputs, providing productivity benefits for different content playback.

FORM FACTOR
Shuttle AIO form factor
PROCESSOR
Intel Whiskeylake-U Celeron 4205U 15W CPU
i3-8145U(optional)
MEMORY
Support DDR4 2133 Mhz memory Max. 32G
VIDEO OUTPUT
Intel UHD Graphics
AUDIO
Realtek ALC269 HD
2W x 1 Mono speaker
ETHERNET
Intel i211
10MB/s,100MB/s, 1000MB/s
Support Wake-On-LANWake on WLAN function
STORAGE INTERFACE
2.5" SATA3 device bay x 1
BACK PANEL
DC in
USB2.0 port x 2
LAN X 1
USB3.1 Gen1 port x 2
HDMI x 1
MIC in X 1
Headphone X 1
D-sub X 1
Kensington lock
POWER
Input:100- 240V AC
Output: 19V/3.42A or 12V/5.42A DC
65W 19V Adapter bundled
ACCESSORIES
Quick Guide x 1
Driver DVD x 1
65W Power Adapter x 1
power cord x 1
EXPANSION SLOT
(1) M.2 2280 Type B,M key socket
(1) M.2 2230 Type A,E Key socket
LCD Panel
15.6" 16:9 Wide Panel, 1366 x 768 pixels
Touch screen
Single touch
Web Cam
2MFHD
Mic
Electret Condenser Microphone
Left Side
Power-on button
Stylus pen
USB3.1 Gen1 port x 2
SD card reader
Clear CMOS
Wireless LAN
Realtek RTL8821CE
Card Reader
SD Card Reader
Item Dimension (L"xW"xH")
19 x 6 x 17

Weight
14 lbs

Warranty Information
3 years
