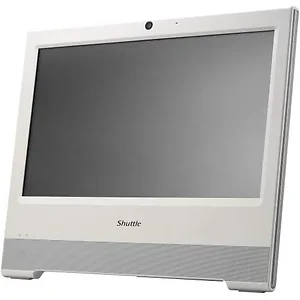

X50V6 WHITE - Shuttle Computers Shuttle System X50V6 WHITE XPC AIO Celeron 3865U Kabylake Barebone Fanless Retail

Fanless and silent
Passive heatpipe cooling, no fan noise at all
Perfect to be used in noise-sensitive environments
Fanless, dust-free and thus virtually maintenance-free 24/7 nonstop operation
This device is approved for 24/7 permanent operation.
Requirements:
- Free circulation of air amongst the PC must be guaranteed.
- Ventilation holes must be kept clear.
- If a hard disk is installed, this must also be approved for permanent operation by its manufacturer. IP54 protected
The front panel is dust-protected and protected from
splashing of water according to protection class IP54. Chassis
Colour: white
100mm VESA mount capable
Mounting hole for Kensington lock
Operating system
This system comes without operating system.
It is compatible with:
- Windows 10 - 64-bit
- Linux - 64-bit Touchscreen
Touchscreen function supports fingertip input
Resistive 5-wire single-touch technology
Stylus for the touchscreen included 39.6cm display (15.6")
39.6 cm / 15.6" LCD display, ratio: 16:9 wide-screen panel
Resolution: 1366 x 768 equal 1.05 Megapixel
Backlight unit: High power LED, Luminance: 220 cd/sqm
Glass thickness: 0.5 mm Processor
Model: Intel Celeron 3865U (ULV)
System-on-a-chip architecture (SoC): no chipset required
BGA1356 package - directly soldered onto the mainboard
Code name: Kaby Lake-U (7th Generation Intel Core)
Cores / Threads: 2 / 2
Clock rate: 1.8 GHz
L1/L2/L3 Cache: 128 kB / 512 kB / 2048 kB
Memory controller: DDR4-2133 Dual Channel (1.2 V)
TDP wattage: 15 W maximum
Manufacturing process: 14 nm
Maximum Tjunction Temperature: 100 ^oC
Supports 64-bit, VT-x (EPT), VT-d, Enhanced SpeedStep, NX bit, AES-NI, SSE 4.1/4.2
Integrated graphics engine Integrated Graphics
Intel HD Graphics 610
GPU clock frequency: 300 to 900 MHz
Execution Units (EUs): 12
Supports DirectX 12
Supports full H264, H265 8/10 bit, VP8/9, VC-1, AVC hardware decoding
Supports Quick Sync Video and Clear Video HD technology Up to three displays simultaneously
Two video ports support two additional independent screens:
1) HDMI 1.4 supports 1920 x 1080 at 60 Hz or 3840 x 2160 at 30 Hz
2) VGA / D-Sub analog video supports 1920 x 1080 at 60 Hz
Special conditions for operation in Multi-Monitoring mode:
1) Clone mode: all displays show the same content at 1366x768 resolution
2) Extended mode: all displays show different content BIOS
AMI BIOS in 8 MByte EEPROM with SPI interface
Supports Power fail resume / always on
Supports Wake-on-LAN (WOL) from S3, S4, S5 ACPI states
Supports hardware monitoring and watch dog functionality
Supports Firmware TPM v2.0 functionality Memory
2x SO-DIMM slot with 260 pins
Supports DDR4-2133 (PC4-17000) SDRAM at 1.2 V
Supports Dual Channel mode
Supports a maximum of 16 GB per DIMM, maximum total size: 32 GB
Supports two unbuffered DIMM modules (no ECC or registered) Hard disk drive / SSD
Supports one SATA hard disk or one SATA SSD drive in 6.35 cm / 2.5" format
The SATA 3.0 interface supports up to 600MB/s data transfer speed (6 Gbit/s)
Supports one drive with up to 12.5 mm in height M.2-2280 Slot
The M.2 2280 BM slot provides the following interfaces:
- PCI-Express Gen. 3.0 X4 with up to 32 Gbps Data Transfer Speed
- SATA v3.0 (max. 6 Gbps)
It supports M.2 cards with a width of 22 mm
and a length of 42, 60 or 80 mm (type 2242, 2260, 2280).
Supports M.2 SATA SSDs (with B+M key) and M.2 PCIe SSDs (with M key) Card Reader
Integrated card reader supports SD, SDHC and SDXC memory flash cards Webcam
Integrated 2.0 Megapixel (1600 x 1200) HD webcam Microphone and speakers
Front panel with integrated Electret Condenser Microphone and 2x 2 W speakers Integrated Audio
Realtek ALC269 Audio Codec
Two analog audio connectors (3.5 mm) on the bottom side:
1) Line-out (head-phones)
2) Microphone input
Digital Audio is supported via HDMI. Wired Network
Intel i211 Ethernet Controller with MAC, PHY and PCIe interface
Supports 10 / 100 / 1.000 MBit/s operation
Supports WAKE ON LAN (WOL) from S3, S4 modes
Supports network boot by Preboot eXecution Environment (PXE) Wireless Network (WLAN)
WLAN chip: Realtek 8188EE
Supports IEEE 802.11b/g/n for 2.4 GHz band
Speed: max. 150 Mbps up-/downstream
Security: WPA/WPA2, WEP
M.2-2230AE card with internal antenna Front LEDs
Power LED (blue)
Hard disk LED (orange)
